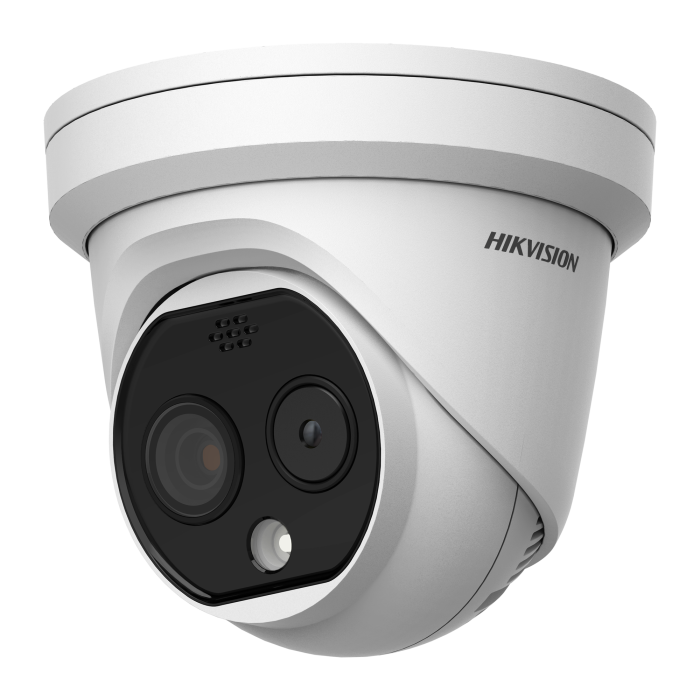

Termokaamera DS-2TD1217-2/QA 4MP

SKU: 305401437

DS-2TD1217-2/QA 1,8mm Termokaamera 4MP (90°x66,4° / 160x120pix.), tava obje. 2mm,strobe light, audio alarm, Hikvision

Jaehind:

€ 1,035.63

€ 848.88 + käibemaks

Laos

Tallinn: 5 tk.

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Latvia: Välja müüdud

160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Support smoking detection algorithm
Support sun-reflection filter
High quality detector with 10 years guarantee

Base Attributes

Brand	Hikvision
Net Weight	0.995
Gross Weight	1.5

Key Parameter

Case type	Bi-spectrum Turret
Resolution	160 × 120
Thermal Lens	1.8 mm
Optical Lens	2 mm

Audible and Visual Alarm

Audio alarm	Yes, for two types of audible alarm (VCA, Temperature) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (4 options shared in the two types)
Visual Alarm	Yes. White light alarm with adjustable flashing frequencies
White Light Range	Up to 30 m

Detection Range Table/Smart Function Range

VCA Range for Humans	10 m
VCA Range for Vehicles	30 m

Illuminator

IR Intensity and Angle	Automatically adjusted

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
Client	iVMS-4200, Hik-Connect
Security	User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

General

Power Consumption	12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Power Supply	12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Working Temperature/Humidity	Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 95% or less

Thermal Module

Min. Focusing Distance	0.1 m
Spectral Range	8 μm to 14 μm

Smart Function

Temperature Accuracy	± 8 °C (± 14.4 °F)
Temperature Measurement	3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)

160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Support smoking detection algorithm
Support sun-reflection filter
High quality detector with 10 years guarantee

Base Attributes

Brand	Hikvision
Net Weight	0.995
Gross Weight	1.5

Key Parameter

Case type	Bi-spectrum Turret
Resolution	160 × 120
Thermal Lens	1.8 mm
Optical Lens	2 mm

Audible and Visual Alarm

Audio alarm	Yes, for two types of audible alarm (VCA, Temperature) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (4 options shared in the two types)
Visual Alarm	Yes. White light alarm with adjustable flashing frequencies
White Light Range	Up to 30 m

Detection Range Table/Smart Function Range

VCA Range for Humans	10 m
VCA Range for Vehicles	30 m

Illuminator

IR Intensity and Angle	Automatically adjusted

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
Client	iVMS-4200, Hik-Connect
Security	User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

General

Power Consumption	12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Power Supply	12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Working Temperature/Humidity	Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 95% or less

Thermal Module

Min. Focusing Distance	0.1 m
Spectral Range	8 μm to 14 μm

Smart Function

Temperature Accuracy	± 8 °C (± 14.4 °F)
Temperature Measurement	3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
