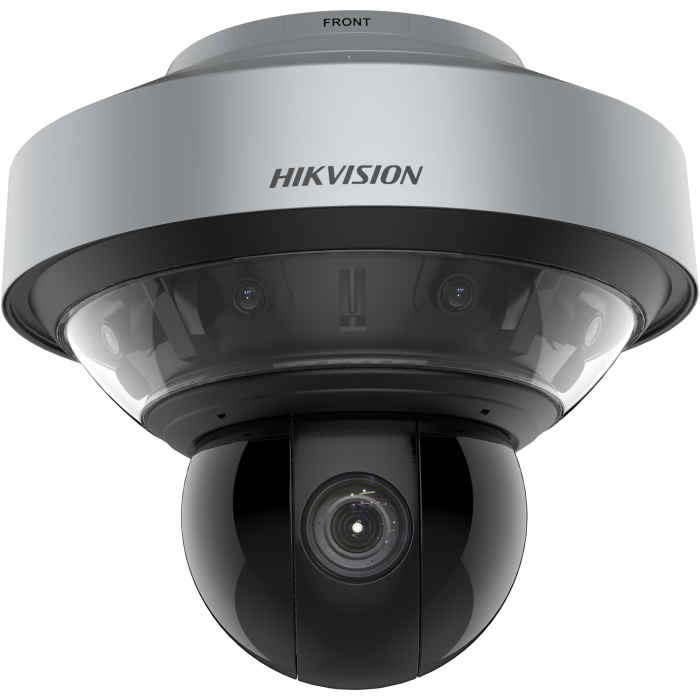

PTZ kaamera DS-2DP3236ZIXS-D/440 F0 P5 32MP 40X

SKU: 327000709

TOP tooted

DS-2DP3236ZIXS-D/440(F0)(P5) PTZ kaamera 32MP 360 kraadi+ pöörukas 4MP x40, Panovu, Hikvision

Jaehind:

€ 9,431.14

€ 7,730.44 + käibemaks

Laos

Tallinn: 3 tk.

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Latvia: Välja müüdud

High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @30 fps for panoramic channels
Excellent low-light performance with DarkFighter technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 250 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

Base Attributes

Brand	Hikvision
Net Weight	15.86
Gross Weight	23.85

Camera

Image Sensor	[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination	[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night	IR cut filter
Zoom	[PTZ channel] 40x optical, 16x digital

Lens

FOV	Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 250 m
Smart Supplement Light	Yes

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream	[Panoramic channel]: 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Security	Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter


Day/Night Switch	Day, night, auto, scheduled-switch
SNR	≥ 55 dB
Image Stabilization	EIS
Defog	[Panoramic channel]: no; [PTZ channel]: optical defog

Interface

Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm	7 alarm inputs, 2 alarm outputs

Event

Smart Event	Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking	Manual tracking, auto-tracking, Support patrol tracking among multiple detection scenes

Deep Learning Function

Face Capture	[Panoramic channel] no,[PTZ channel] yes

General

Demist	Yes
Operating Condition	-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper	No
Dimension	Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")

Approval

Protection	IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
Safety	UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)

High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @30 fps for panoramic channels
Excellent low-light performance with DarkFighter technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 250 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

Base Attributes

Brand	Hikvision
Net Weight	15.86
Gross Weight	23.85

Camera

Image Sensor	[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination	[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night	IR cut filter
Zoom	[PTZ channel] 40x optical, 16x digital

Lens

FOV	Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 250 m
Smart Supplement Light	Yes

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream	[Panoramic channel]: 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Security	Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter


Day/Night Switch	Day, night, auto, scheduled-switch
SNR	≥ 55 dB
Image Stabilization	EIS
Defog	[Panoramic channel]: no; [PTZ channel]: optical defog

Interface

Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm	7 alarm inputs, 2 alarm outputs

Event

Smart Event	Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking	Manual tracking, auto-tracking, Support patrol tracking among multiple detection scenes

Deep Learning Function

Face Capture	[Panoramic channel] no,[PTZ channel] yes

General

Demist	Yes
Operating Condition	-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper	No
Dimension	Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")

Approval

Protection	IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
Safety	UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
