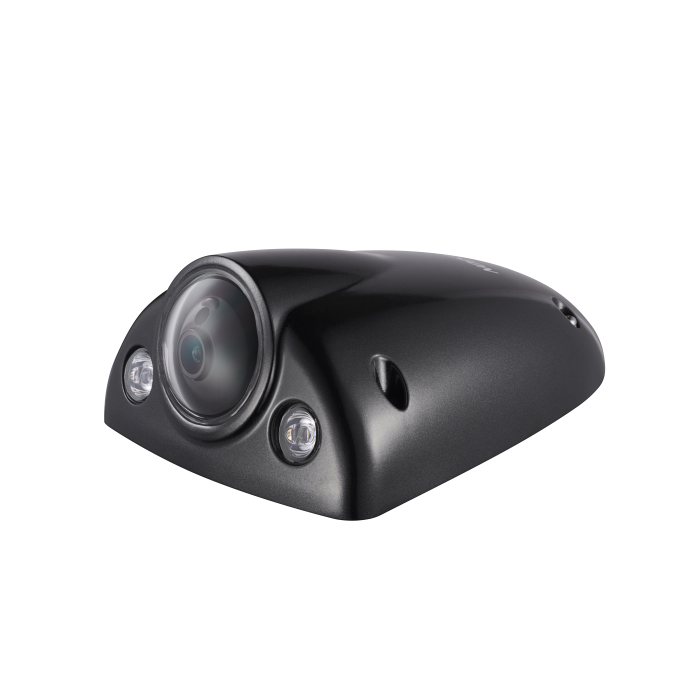

Pardakaamera DS-2XM6522G1-IDM 2.8mm 2MP väli

SKU: 316400655

DS-2XM6512WD

DS-2XM6522G1-IDM(2.8mm) Pardakaamera 2MP,väli,2,8mm,IR,sõiduki, M12+24VDC Hikvision

Jaehind:

€ 361.24

€ 296.10 + käibemaks

Laos

Tallinn: 2 tk.

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Latvia: Välja müüdud

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP68,IP69K) and vandal proof (IK10)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3DNR technology delivers clean and sharp images

Base Attributes

Brand	Hikvision
Net Weight	0.9
Gross Weight	1.25

Key Parameter

Resolution	2 MP
Wi-Fi	N/A
Storage Type	TF cards,up to 256GB
AI	N/A, N/A
IR Range	30~60m
Video Compression	H.265+
Audio Support	No

Camera

Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night	IR Cut Filter
Angle Adjustment	2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

Lens

Focal Length & FOV	2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° 4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° 6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Max. Aperture	2.8 mm/4 mm/6 mm: F 1.6

Illuminator

Smart Supplement Light	Yes

Video

Video Bit Rate	Main Stream: 256 Kbps to 12 Mbps Sub-Stream: 256 Kbps to 4 Mbps Third Stream: 256 Kbps to 12 Mbps
Main Stream	50Hz:25fps(1920 x 1080, 1280x960, 1280 x 720) 60Hz:30fps(1920 x 1080, 1280x960, 1280 x 720)

Network

Simultaneous Live View	Up to 8 channels
Protocols	TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS


Day/Night Switch	Day/Night/Auto/Schedule
SNR	＞50dB
Smart IR	No

Interface

Audio	No
Alarm	No
TF Card Storage	Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)
Heater	Yes

Event

Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error)
Smart Event	Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection: detects faces and upload images Scene change detection, defocus detection, Loitering Detection, People Gathering Detection, Fast Moving Detection, Parking Detection,

General

General Function	Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Power Consumption	-ID, -IDM: 9~36 V DC, max. 10 W -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W
Power Supply	-ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3
Power interface	-I/ND: RJ45 interface, PoE power supply -ID: Ø 5.5 mm coaxial power plug, DC -IDM: two-core Molex connector, DC power supply -IM/ND: four-core M12 aviation plug, PoE power supply
Startup and Operating Conditions	-40 °C to 75 °C (-40 °F to 167°F), humidity less than 95% or less (non-condensing)

Approval

Safety	CB: IEC 60950-1CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
