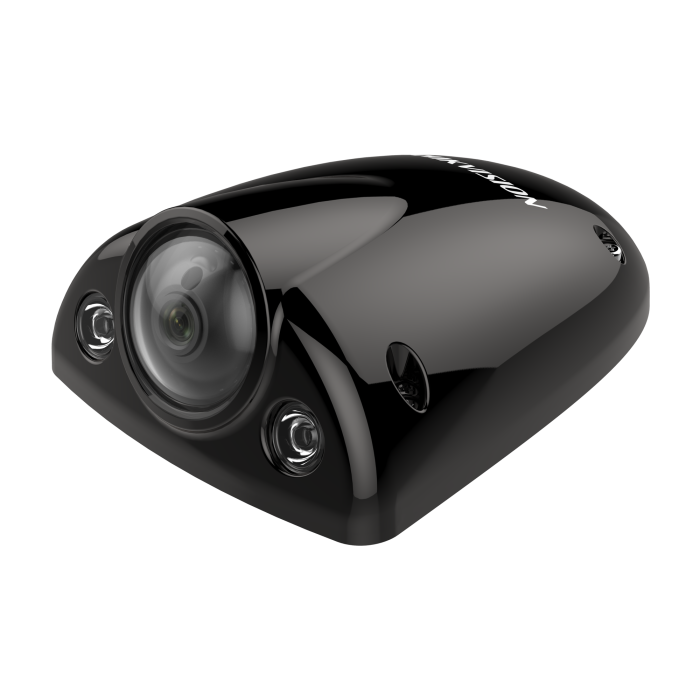

Pardakaamera DS-2XM6522G0-ID 2.8mm)(C) 2MP väli

SKU: 316400118

TOP tooted

DS-2XM6522G0-ID(2.8mm)(C) Pardakaamera 2MP,väli,2,8mm,IR,sõiduki, RJ45+24VDC, no POE Hikvision

Jaehind:

€ 251.44

€ 206.10 + käibemaks

Laos

Tallinn: 5 tk.

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Latvia: Välja müüdud

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP68) and vandal proof (IK10)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3D DNR technology delivers clean and sharp images

Base Attributes

Brand	Hikvision
Net Weight	0.855
Gross Weight	1.223

Key Parameter

Resolution	2 MP
Wi-Fi	N/A
Storage Type	N/A
AI	N/A
IR Range	<30m
Video Compression	H.265+
Audio Support	No

Camera

Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night	IR Cut Filter
Angle Adjustment	2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

Lens

Focal Length & FOV	2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect, Hik-Central


Day/Night Switch	Day/Night/Auto/Schedule

Interface

Audio	No
On-Board Storage	No
Alarm	No

Event

Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Object detection: detects objects and upload images Scene change detection, defocus detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 lines configurable Intrusion
detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Object detection: detects objects and upload images
Scene change detection, defocus detection

General

General Function	Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Power Supply	-ID, -IDM: 24 VDC ± 25%, two-core terminal block, reverse polarity protection; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 0
Startup and Operating Conditions	-40 °C to 70 °C (-40 °F to 158 °F).Humidity 95% or less (non-condensing)

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP68) and vandal proof (IK10)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3D DNR technology delivers clean and sharp images

Base Attributes

Brand	Hikvision
Net Weight	0.855
Gross Weight	1.223

Key Parameter

Resolution	2 MP
Wi-Fi	N/A
Storage Type	N/A
AI	N/A
IR Range	<30m
Video Compression	H.265+
Audio Support	No

Camera

Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night	IR Cut Filter
Angle Adjustment	2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

Lens

Focal Length & FOV	2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect, Hik-Central


Day/Night Switch	Day/Night/Auto/Schedule

Interface

Audio	No
On-Board Storage	No
Alarm	No

Event

Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Object detection: detects objects and upload images Scene change detection, defocus detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

General

General Function	Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Power Supply	-ID, -IDM: 24 VDC ± 25%, two-core terminal block, reverse polarity protection; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 0
Startup and Operating Conditions	-40 °C to 70 °C (-40 °F to 158 °F).Humidity 95% or less (non-condensing)
