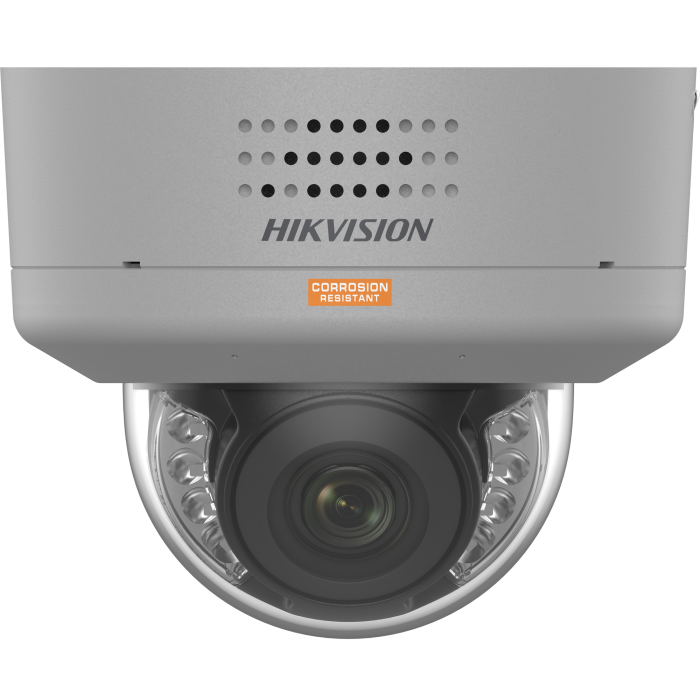

IP kaamera DS-2XC3146G0H-LISU/SL 4MP 2.8mm PA kuppel

SKU: 311328405

Uus

DS-2XC3146G0H-LISU/SL IP kaamera 4MP 2.8mm PA,Kuppel, ColorVu, PTR, korrosioonikindel, Polymer, Hikvision

Jaehind:

€ 802.28

€ 647.00 + käibemaks

Otsas

Tallinn: Välja müüdud

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Jõhvi: Välja müüdud

Latvia: Välja müüdud

Anna mulle teada

Motorized Pan, Tilt, and Rotate for easy installation and monitoring
24/7 colorful imaging via ColorVu technology
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Clear imaging against strong back light due to 130 dB WDR technology
Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
Supports 1.5 Tops computing power, 150 MB system memory, 371 MB smart RAM, and 1 GB eMMC storage for sharing resources
Clear two-way audio with dual-array mic
Active strobe light and audio alarm to warn intruders off (-SL)
Water and dust resistant (IP68) and vandal resistant (IK10)
Audio and alarm interface available
Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2XC3146G0H-LISU/SL(PA)(2.8mm)
Net Weight	1.21
Gross Weight	2.075

Key Parameter

Case type	Dome
Resolutsioon	4 MP
Low-Light Imaging	ColorVu, Darkfighter S
AI	Perimeter Protection(Strobe Light and Audio), AIOP
Supplemental Light	Smart Hybrid Light
Specific Protection	Anti-Corrosion

Camera

Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Day & Night	IR cut filter
Angle Adjustment	Remote adjustment (Max. 1000 cycles) Pan: -175° to 175°,tilt: 0° to 85°,rotate: 0° to 350°

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Iris Type	Fixed
Depth of Field	2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Up to 40 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 20 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
SNR	≥ 52 dB

Interface

Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-in Microphone	Yes, 2 built-in microphones
Built-in Speaker	1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection

Deep Learning Function

Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø154.9 mm × 128.53 mm (Ø6.10" × 5.06")

Approval

Anti-Corrosion Protection	NEMA 4X: NEMA 250-2018 C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
Protection	IK10: IEC 62262:2002,IP68: IEC 60529-2013
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Motorized Pan, Tilt, and Rotate for easy installation and monitoring
24/7 colorful imaging via ColorVu technology
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Clear imaging against strong back light due to 130 dB WDR technology
Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
Supports 1.5 Tops computing power, 150 MB system memory, 371 MB smart RAM, and 1 GB eMMC storage for sharing resources
Clear two-way audio with dual-array mic
Active strobe light and audio alarm to warn intruders off (-SL)
Water and dust resistant (IP68) and vandal resistant (IK10)
Audio and alarm interface available
Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2XC3146G0H-LISU/SL(PA)(2.8mm)
Net Weight	1.21
Gross Weight	2.075

Key Parameter

Case type	Dome
Resolutsioon	4 MP
Low-Light Imaging	ColorVu, Darkfighter S
AI	Perimeter Protection(Strobe Light and Audio), AIOP
Supplemental Light	Smart Hybrid Light
Specific Protection	Anti-Corrosion

Camera

Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Day & Night	IR cut filter
Angle Adjustment	Remote adjustment (Max. 1000 cycles) Pan: -175° to 175°,tilt: 0° to 85°,rotate: 0° to 350°

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Iris Type	Fixed
Depth of Field	2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Up to 40 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 20 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
SNR	≥ 52 dB

Interface

Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-in Microphone	Yes, 2 built-in microphones
Built-in Speaker	1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection

Deep Learning Function

Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø154.9 mm × 128.53 mm (Ø6.10" × 5.06")

Approval

Anti-Corrosion Protection	NEMA 4X: NEMA 250-2018 C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
Protection	IK10: IEC 62262:2002,IP68: IEC 60529-2013
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
