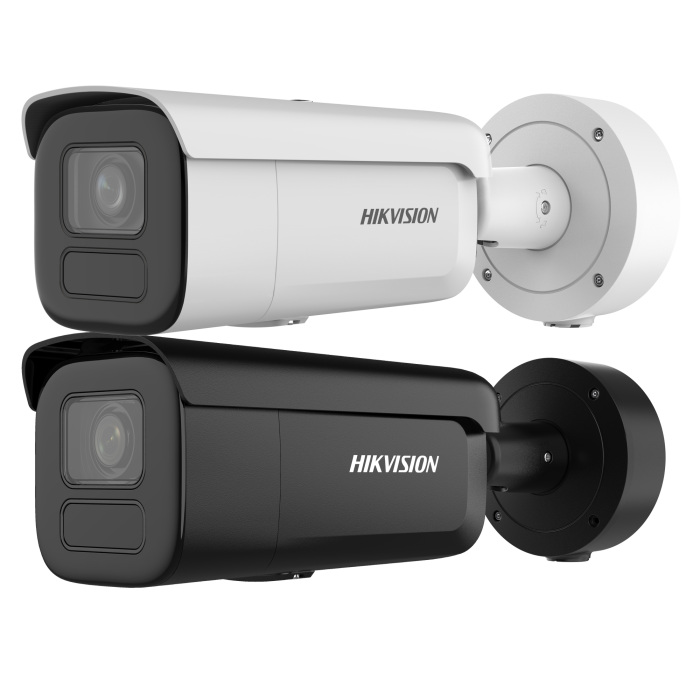

IP kaamera DS-2CD2686G2H-IZS 2.8-12mm 8MP eF Darkfighter toru valge

SKU: 311331208

Uus

DS-2CD2686G2H-IZS(2.8-12mm)(eF) Valge IP Kaamera 8MP Toru eF Darkfighter 120dB WDR, IP67, IK10 Hikvision

Jaehind:

€ 804.76

€ 649.00 + käibemaks

Otsas

Tallinn: Välja müüdud

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Jõhvi: Välja müüdud

Latvia: Välja müüdud

Anna mulle teada

High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67) and vandal resistant (IK10)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD2686G2H-IZS(2.8-12mm)(eF)
Net Weight	1.56
Gross Weight	2.733

Key Parameter

Case type	Bullet
Resolutsioon	8 MP
Lens Type	Motorized Varifocal Lens
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	21-50m
Storage Type	SD Card
AI	Face Capture, Perimeter Protection
Supplemental Light	IR Light

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Camera Module

WDR	130 dB

Lens

Focal Length & FOV	2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Iris Type	Fixed
Depth of Field	1 m to ∞

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	NA
Built-in Speaker	NA
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Smart Event	Scene change detection

Deep Learning Function

Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø140 mm × 333.8 mm (Ø5.51" × 13.14")

Approval

Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1

High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67) and vandal resistant (IK10)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD2686G2H-IZS(2.8-12mm)(eF)
Net Weight	1.56
Gross Weight	2.733

Key Parameter

Case type	Bullet
Resolutsioon	8 MP
Lens Type	Motorized Varifocal Lens
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	21-50m
Storage Type	SD Card
AI	Face Capture, Perimeter Protection
Supplemental Light	IR Light

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Camera Module

WDR	130 dB

Lens

Focal Length & FOV	2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Iris Type	Fixed
Depth of Field	1 m to ∞

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	NA
Built-in Speaker	NA
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Smart Event	Scene change detection

Deep Learning Function

Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø140 mm × 333.8 mm (Ø5.51" × 13.14")

Approval

Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
