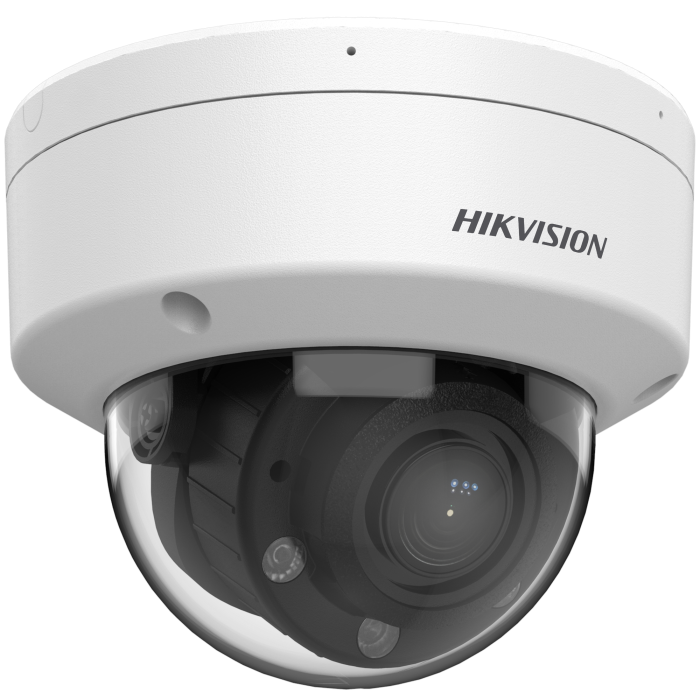

IP kaamera DS-2CD1743G2-LIZ(S)U 4MP kuppel

SKU: 311325238

DS-2CD1743G2-LIZSU(2.8-12mm) IP kaamera 4MP, 2.8-12mm,kuppel, IR+valge valgus, Audio/Alarm, IP 67, IK08, Hikvision

Jaehind:

€ 313.86

€ 253.11 + käibemaks

Laos

Tallinn: 10+ tk.

Tartu: Välja müüdud

Central Tallinn: Välja müüdud

Latvia: Välja müüdud

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 120 dB true WDR technology
Support on-board storage up to 512 GB (SD card slot)
Efficient H.265+ compression technology
Built-in microphone for real-time audio security
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67), vandal proof (IK08)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD1743G2-LIZSU(2.8-12mm)
Net Weight	0.53
Gross Weight	0.736

Key Parameter

Case type	Dome
Resolution	4 MP
Lens Type	Motorized Varifocal Lens
Low-Light Imaging	Normal
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	SD Card
AI	N/A
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
Iris Type	Fixed

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	Yes,1 built-in microphone
Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

General

General Function	Heartbeat,anti-banding,mirror,password protection,password reset via email
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")

Approval

Protection	IP67: IEC 60529-2013,IK08: IEC 62262:2002
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 120 dB true WDR technology
Support on-board storage up to 512 GB (SD card slot)
Efficient H.265+ compression technology
Built-in microphone for real-time audio security
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67), vandal proof (IK08)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD1743G2-LIZSU(2.8-12mm)
Net Weight	0.53
Gross Weight	0.736

Key Parameter

Case type	Dome
Resolution	4 MP
Lens Type	Motorized Varifocal Lens
Low-Light Imaging	Normal
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	SD Card
AI	N/A
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
Iris Type	Fixed

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	Yes,1 built-in microphone
Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

General

General Function	Heartbeat,anti-banding,mirror,password protection,password reset via email
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")

Approval

Protection	IP67: IEC 60529-2013,IK08: IEC 62262:2002
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
