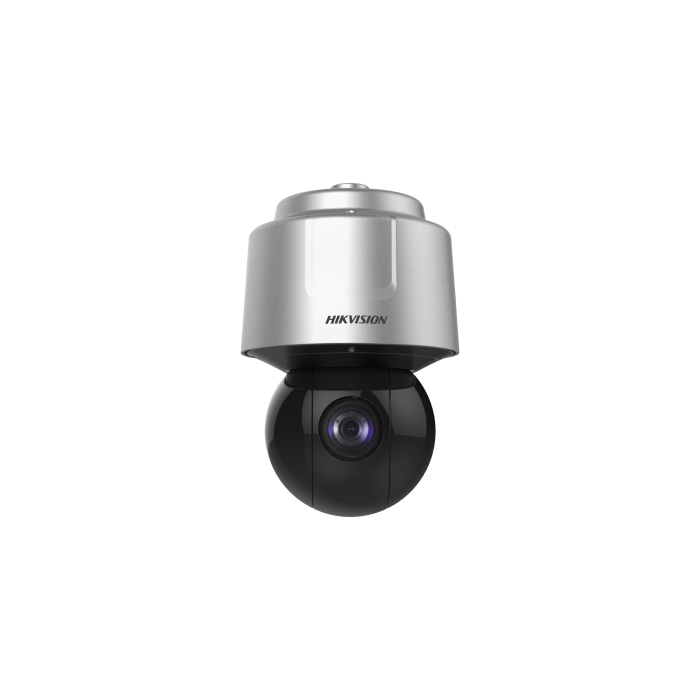

Turbo camera DS-2DF6A225X-AEL(T5) 25X 2MP DarkFighter

Turbo camera DS-2DF6A225X-AEL(T5) 25X 2MP DarkFighter

SKU: 327000309

13-2-

Turbo camera Hikvision DS-2DF6A225X-AEL(T5) 2MP 25X 6 Series DarkFighter Dome Silver

Retail price:

€ 2,377.76

€ 1,917.55 + VAT

In stock

Tallinn: 5 pcs.

Tartu: Sold Out

Central Tallinn: Sold Out

Jõhvi: Sold Out

Latvia: Sold Out

1/1.8" Progressive Scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Supports rapid focus
Water and dust resistant (IP67) and vandal proof (IK10)
Supports face capture to detect, capture, grade, and select faces in motion
Supports road traffic to detect vehicles

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2DF6A225X-AEL(T5)
Net Weight	5.76
Gross Weight	8.45

Key Parameter

Resolution	2 MP
Optical Zoom	21-30X
Low-Light Imaging	Darkfighter
Illumination Distance	N/A
Wireless Network	N/A

Camera

Image Sensor	1/1.8" progressive scan CMOS
Min. Illumination	Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Day & Night	IR cut filter
Zoom	25x optical, 16x digital

Lens

FOV	Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-20° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Video Bit Rate	32 Kbps to 16384 Kbps
Main Stream	50 Hz: 25 fps (1920×1080, 1280×960, 1280×720) 60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
User/Host	Up to 32 users. 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect, HikCentral
Security	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering


Day/Night Switch	Day, night, auto, scheduled-switch
SNR	≥ 52 dB
Image Stabilization	EIS (Built-in gyroscope to improve EIS performance)
Defog	Optical defog

Interface

Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm	7 alarm inputs, 2 alarm outputs

Event

Basic Event	Motion detection, video tampering alarm, alarm input and output, exception
Smart Event	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
Smart Tracking	Manual tracking, auto-tracking

Deep Learning Function

Face Capture	Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Mirror, password protection, watermark, IP address filter
Operating Condition	Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Power Supply	Hi-PoE, 24 VAC
Dimension	⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14")

Approval

Protection	Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Safety	UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
