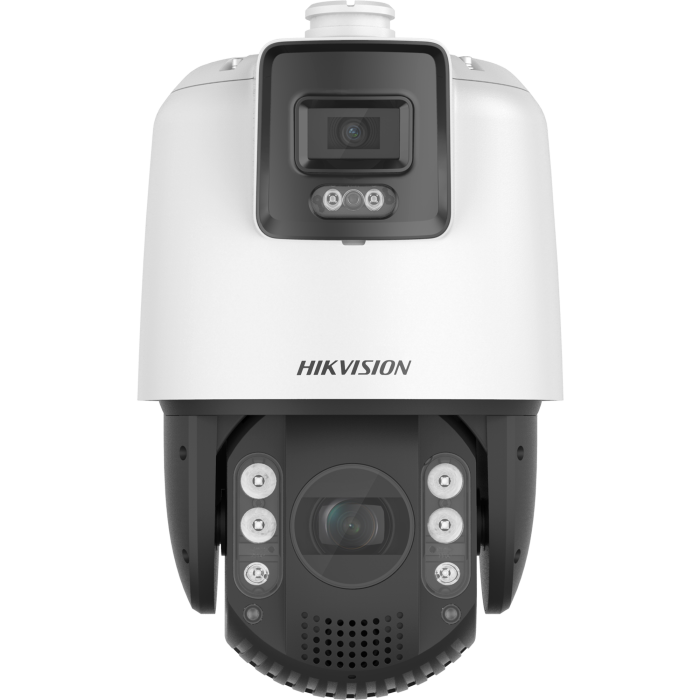

PTZ camera DS-2SE7C144IW-AE 32X/4 4MP 32X TandemVu white

SKU: 327000120

PTZ camera Hikvision DS-2SE7C144IW-AE 32X/4 4MP TandemVu 7-inch 32X Powered by DarkFighter IR Speed Dome

Retail price:

€ 1,766.34

€ 1,447.82 + VAT

In stock

Tallinn: 2 psc.

Tartu: Sold Out

Central Tallinn: Sold Out

Latvia: 6 psc

1/2.8" Progressive Scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 32× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
Expansive night view with up to 200 m IR distance
Supports 24 VAC & Hi-PoE
Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable

Base Attributes

Brand	Hikvision
Net Weight	6.195
Gross Weight	8.78

Key Parameter

Resolution	4 MP
Optical Zoom	31-50X
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	101-300m
Wireless Network	N/A

Camera

Image Sensor	[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Min. Illumination	[panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Day & Night	ICR
Zoom	16x digital

Lens

FOV	[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)

Illuminator

Supplement Light Range	[PTZ channel]: up to 200 m; [panoramic channel]: up to 30 m

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Scheduled Task	preset\|\|pattern scan\|\|patrol scan\|\|auto scan\|\|tilt scan\|\|random scan\|\|frame scan\|\|panorama scan\|\|dome reboot\|\|dome adjust\|\|aux output\|\|关闭

Video

Video Bit Rate	32 kbps to 16384 kbps
Main Stream	[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	20
Protocols	IPv4/IPv6\|\|HTTP\|\|HTTPS\|\|802.1x\|\|Qos\|\|FTP\|\|SMTP\|\|UPnP\|\|SNMP\|\|DNS\|\|DDNS\|\|NTP\|\|RTSP\|\|RTCP\|\|RTP\|\|TCP/IP\|\|UDP\|\|IGMP\|\|ICMP\|\|DHCP\|\|PPPoE\|\|Bonjour
User/Host	32
Client	iVMS-4200\|\|Hik-Connect
Security	Authenticated username and password\|\|MAC address binding\|\|HTTPS encryption\|\|802.1X authenticated access\|\|IP address filter


Day/Night Switch	day, night, auto, scheduled-switch
SNR	＞52dB
Image Stabilization	EIS (Built-in gyroscope to improve EIS performance)
Defog	yes

Interface

Audio	1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Alarm	2 input(s), 1 output(s)

Event

Basic Event	motion detection\|\|alarm input\|\|alarm output\|\|video tampering alarm\|\|exception
Smart Event	intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
Smart Tracking	manual tracking\|\|panorama tracking\|\|event tracking\|\|auto-tracking\|\|tracking takeover

Deep Learning Function

Face Capture	Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General

Demist	Demist by heating the glass
General Function	mirror, password protection, watermark, IP address filter
Operating Condition	-30℃ to 65℃ (-22°F to 149°F) \|\|humidity lower than 90%RH
Power Supply	24 VAC, Hi-PoE
Dimension	Ø220 mm × 382.1 mm (Ø 8.7" × 15.0")

Approval

Protection	IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

1/2.8" Progressive Scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 32× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
Expansive night view with up to 200 m IR distance
Supports 24 VAC & Hi-PoE
Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable

Base Attributes

Brand	Hikvision
Net Weight	6.195
Gross Weight	8.78

Key Parameter

Resolution	4 MP
Optical Zoom	31-50X
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	101-300m
Wireless Network	N/A

Camera

Image Sensor	[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Min. Illumination	[panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Day & Night	ICR
Zoom	16x digital

Lens

FOV	[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)

Illuminator

Supplement Light Range	[PTZ channel]: up to 200 m; [panoramic channel]: up to 30 m

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Scheduled Task	preset\|\|pattern scan\|\|patrol scan\|\|auto scan\|\|tilt scan\|\|random scan\|\|frame scan\|\|panorama scan\|\|dome reboot\|\|dome adjust\|\|aux output\|\|关闭

Video

Video Bit Rate	32 kbps to 16384 kbps
Main Stream	[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	20
Protocols	IPv4/IPv6\|\|HTTP\|\|HTTPS\|\|802.1x\|\|Qos\|\|FTP\|\|SMTP\|\|UPnP\|\|SNMP\|\|DNS\|\|DDNS\|\|NTP\|\|RTSP\|\|RTCP\|\|RTP\|\|TCP/IP\|\|UDP\|\|IGMP\|\|ICMP\|\|DHCP\|\|PPPoE\|\|Bonjour
User/Host	32
Client	iVMS-4200\|\|Hik-Connect
Security	Authenticated username and password\|\|MAC address binding\|\|HTTPS encryption\|\|802.1X authenticated access\|\|IP address filter


Day/Night Switch	day, night, auto, scheduled-switch
SNR	＞52dB
Image Stabilization	EIS (Built-in gyroscope to improve EIS performance)
Defog	yes

Interface

Audio	1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Alarm	2 input(s), 1 output(s)

Event

Basic Event	motion detection\|\|alarm input\|\|alarm output\|\|video tampering alarm\|\|exception
Smart Event	intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
Smart Tracking	manual tracking\|\|panorama tracking\|\|event tracking\|\|auto-tracking\|\|tracking takeover

Deep Learning Function

Face Capture	Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General

Demist	Demist by heating the glass
General Function	mirror, password protection, watermark, IP address filter
Operating Condition	-30℃ to 65℃ (-22°F to 149°F) \|\|humidity lower than 90%RH
Power Supply	24 VAC, Hi-PoE
Dimension	Ø220 mm × 382.1 mm (Ø 8.7" × 15.0")

Approval

Protection	IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
