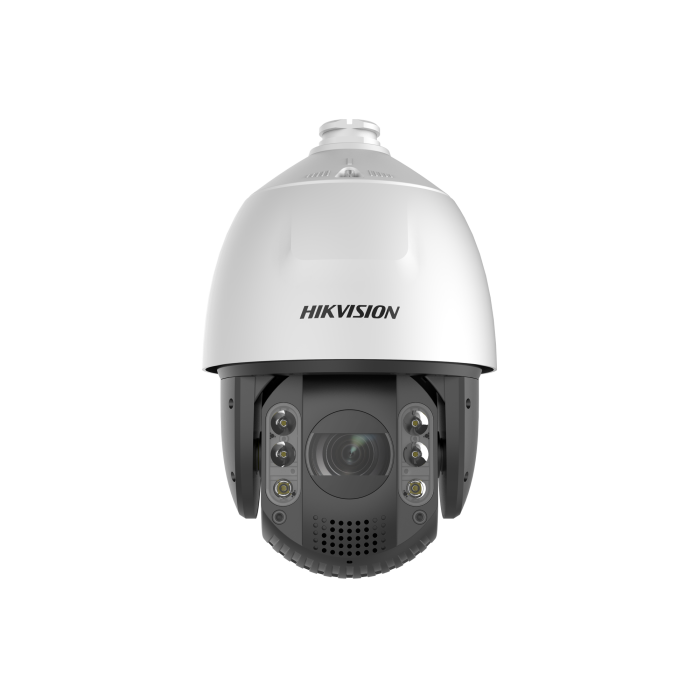

PTZ camera DS-2DE7A432IW-AEB 4MP 32X

SKU: 327000243

PTZ camera Hikvision DS-2DE7A432IW-AEB 4MP 32X IR 200m IP66 IK10 Dome

Retail price:

€ 1,739.29

€ 1,402.65 + VAT

In stock

Tallinn: 1 pcs.

Tartu: Sold Out

Central Tallinn: Sold Out

Jõhvi: Sold Out

Latvia: 1 pcs

1/1.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
32× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2DE7A432IW-AEB(T5)
Net Weight	5.095
Gross Weight	8.465

Key Parameter

Resolution	4 MP
Optical Zoom	31-50X
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	101-300m
Wireless Network	N/A

Camera

Image Sensor	1/1.8" progressive scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Day & Night	IR cut filter
Zoom	32x optical, 16x digital

Lens

FOV	Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)

Illuminator

Supplement Light Type	IR
Supplement Light Range	IR Distance: up to 200 m

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Video Bit Rate	32 kbps to 16384 kbps
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host	Up to 32 users, 3 user levels: administrator, operator, and user
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)


Day/Night Switch	Day, Night, Auto, Schedule
SNR	> 52 dB
Image Stabilization	EIS
Defog	Digital defog

Interface

Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Speaker	1 built-in speaker with effective distance reaching max. 30 meters
Alarm	2 inputs, 1 output

Event

Basic Event	Motion detection, video tampering alarm, exception, alarm input and output
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Smart Tracking	Manual tracking, auto-tracking

Deep Learning Function

Face Capture	Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Demist	Yes
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power Supply	Hi-PoE, 24 VAC
Dimension	Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")

Approval

Protection	IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
Safety	UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)

1/1.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
32× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2DE7A432IW-AEB(T5)
Net Weight	5.095
Gross Weight	8.465

Key Parameter

Resolution	4 MP
Optical Zoom	31-50X
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	101-300m
Wireless Network	N/A

Camera

Image Sensor	1/1.8" progressive scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Day & Night	IR cut filter
Zoom	32x optical, 16x digital

Lens

FOV	Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)

Illuminator

Supplement Light Type	IR
Supplement Light Range	IR Distance: up to 200 m

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Video Bit Rate	32 kbps to 16384 kbps
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host	Up to 32 users, 3 user levels: administrator, operator, and user
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)


Day/Night Switch	Day, Night, Auto, Schedule
SNR	> 52 dB
Image Stabilization	EIS
Defog	Digital defog

Interface

Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Speaker	1 built-in speaker with effective distance reaching max. 30 meters
Alarm	2 inputs, 1 output

Event

Basic Event	Motion detection, video tampering alarm, exception, alarm input and output
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Smart Tracking	Manual tracking, auto-tracking

Deep Learning Function

Face Capture	Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Demist	Yes
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power Supply	Hi-PoE, 24 VAC
Dimension	Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")

Approval

Protection	IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
Safety	UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
