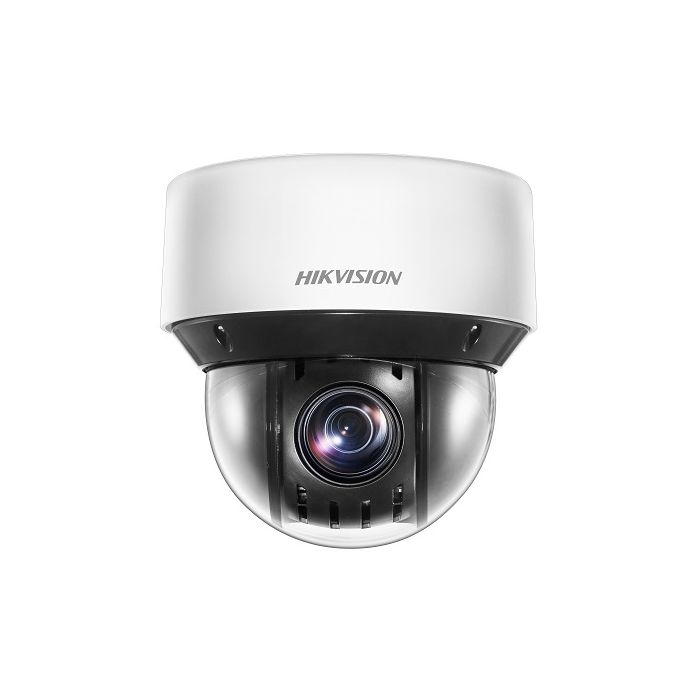

PTZ camera DS-2DE4A225IW-DE 2MP 25X DarkFighter mini dome white

SKU: 327000220

PTZ camera Hikvision DS-2DE4A225IW-DE(S6) 2MP 25X Powered by DarkFighter IR Speed Dome

Retail price:

€ 862.56

€ 707.02 + VAT

In stock

Tallinn: 10+ psc.

Tartu: 2 psc.

Central Tallinn: 10+ psc.

Latvia: Sold Out

High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25× optical zoom allows for closer viewing of subjects in expansive areas
Up to 50m IR range ensures safety at night
Water and dust resistant (IP66)

Base Attributes

Brand	Hikvision
Net Weight	2.5
Gross Weight	3.378

Key Parameter

Resolution	2 MP
Optical Zoom	21-30X
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	21-50m
Wireless Network	N/A

Camera

Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Day & Night	IR cut filter
Zoom	25x optical, 16x digital

Lens

FOV	Horizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.3° to 3.1°

Illuminator

Supplement Light Type	IR
Supplement Light Range	IR Distance: up to 50 m
Smart Supplement Light	Yes

PTZ

Movement Range (Pan)	0° to 360°
Movement Range (Tilt)	-5° to 90°
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Scheduled Task	preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust

Video

Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Network

Simultaneous Live View	Up to 20 channels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)


Day/Night Switch	Day, Night, Auto, Schedule
SNR	＞52 dB
Image Stabilization	No
Defog	Digital Defog

Interface

Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage	Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm	2 inputs, 2 outputs

Event

Basic Event	Motion detection, video tampering alarm, exception, alarm input and output
Smart Event	Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

General

General Function	Mirror, password protection
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power Supply	12 VDC
Dimension	Ø 169 mm × 161 mm (Ø 6.65" × 6.34")

Approval

Protection	IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
