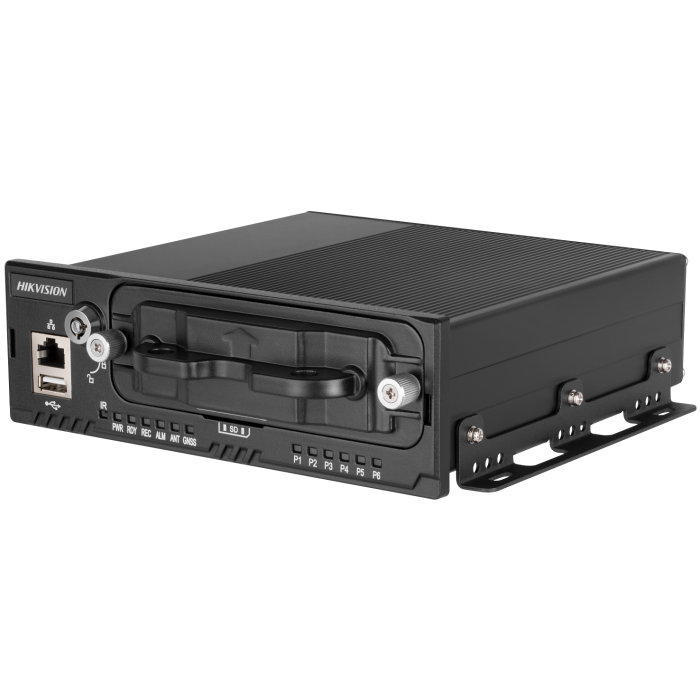

MVR AE-MN5043 4-ch 1TB HDD 2xHDD slots

SKU: 314700255
  • 4-ch IP cameras connectable via PoE interfaces, and 4-ch IP cameras extendable via PoE switch.
  • Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
  • Pluggable dummy HDD for HDD/SSD with up to 2 TB capacity.
  • User-friendly GUI providing easy and flexible operations.
  • Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
  • Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
  • Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
  • Specialized aviation connectors ensuring signal stability.
  • Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
  • Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
  • Wide-range power input (+9 VDC to +32 VDC).
  • Power-off protection prevents key data loss.
  • Aluminum die-cast chassis with no fan design well adaptable to working environment.
  • Software-based firewall supported.
  • Support accessing via WEB browser.
  • Support recording backup on redundant HDD/SSDs.
Retail price:
€ 736.56
€ 594.00 + VAT
out-of-stock

Out of stock

Tallinn:
Tartu:
Central Tallinn:
Jõhvi:
Latvia:

Notify me
file
(484.7 KB)
file
(414.8 KB)
file
(429.3 KB)
file
(466.9 KB)
file
(412.1 KB)

Base Attributes

Manufacturer Code AE-MN5043(1T)(RJ45)
Net Weight 1.755
Gross Weight 2.8

Key Parameter

Wi-Fi 5.8G
3G/4G 4G
Storage 2× 2.5 inch HDD/SSD
AI N/A
Video Input 4-ch
Video Output 1-ch CVBS output
GNSS (Global Navigation Satellite System) Glonass

Video/Audio Input

IP Camera 4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.

General

Brand HIKVISION
Power Consumption Standby: ≤ 0.5 W Full load: ≤ 55 W Note: Without peripheral and storage media ≤ 20 W
Power Supply +9 to +36 VDC
Operating Humidity 10% to 95% (non-condensing)
Operating Temperature -25 °C to +70 °C (-13 °F to +158°F)

Approval

Safety CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )

Auxiliary Interface

Serial Port 1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)

Encoding/decoding parameters

Encoding resolution Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF
Stream Type Video, video & audio
