IP camera IPC-T220HA-LU 2MP f2.8mm turret white

IP camera IPC-T220HA-LU 2MP f2.8mm turret white

SKU: 311321917

51--hilook-

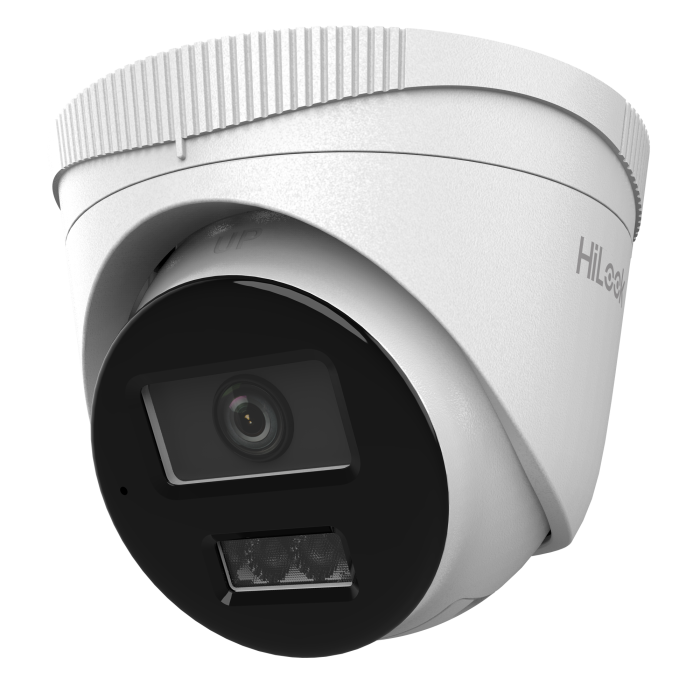

IP camera HiLook IPC-T220HA-LU 2MP f2.8mm Smart Hybrid Light MD2.0IP67 Turret White

Retail price:

€ 55.63

€ 44.86 + VAT

In stock

Tallinn: 10+ pcs.

Tartu: Sold Out

Central Tallinn: Sold Out

Jõhvi: 8 pcs.

Latvia: 10+ pcs

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology

Base Attributes

Brand	Hilook
Manufacturer Code	IPC-T220HA-LU(2.8mm)
Net Weight	0.35
Gross Weight	0.546

Key Parameter

Case type	Turret
Resolution	2 MP
Lens Type	Fixed Lens
Illumination Level	Normal
Wireless Network	N/A
Storage Type	N/A
IR Distance	21-50m

Camera

Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Iris Type	Fixed

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,HiLookVision
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

On-Board Storage	NA
Built-in Microphone	Yes

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

General

General Function	Heartbeat,anti-banding,mirror,password protection,password reset via email
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	DC12V&PoE
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø112 mm × 82 mm (Ø4.41" × 3.23")

Approval

Protection	IP67: IEC 60529-2013
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
