IP camera DS-2XS6A47G1-LS/4G 4MP 2.8mm bullet white

IP camera DS-2XS6A47G1-LS/4G 4MP 2.8mm bullet white

SKU: 311320410

89--

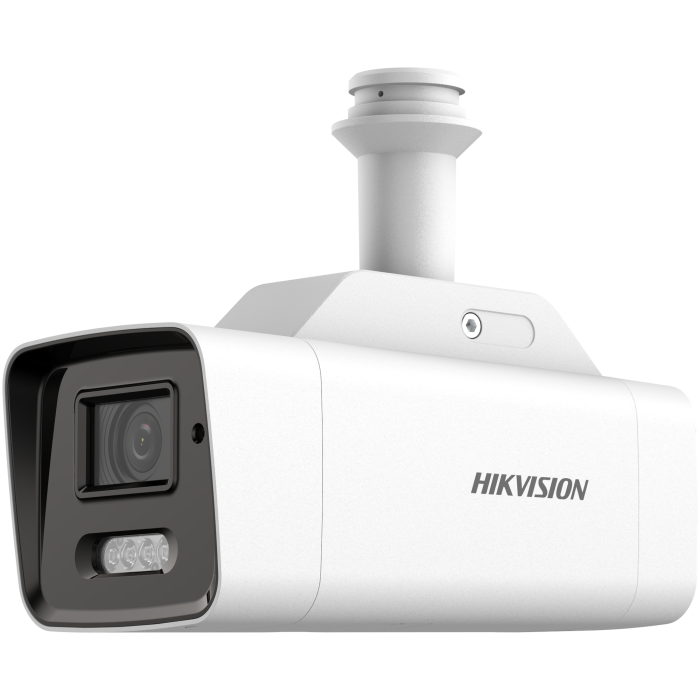

IP camera Hikvision DS-2XS6A47G1-LS/4G 4MP ColorVu Fixed 4G Bullet White

Retail price:

€ 777.39

€ 626.93 + VAT

In stock

Tallinn: 2 pcs.

Tartu: Sold Out

Central Tallinn: Sold Out

Latvia: Sold Out

High quality imaging with 2560 × 1440@ 15 fps resolution
24/7 Colorful imaging
Clear imaging against strong back light due to 130 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
Camera: Water and dust resistant (IP67)
Built-in 64 GB eMMC storage

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2XS6A47G1-LS/4G(2.8mm)
Net Weight	2.265
Gross Weight	3.233

Key Parameter

Case type	Bullet
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	ColorVu
Illumination Distance	21-50m
Wireless Network	4G
Storage Type	SD Card, EMMC
AI	Perimeter Protection
Local Output	N/A

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Camera Module

WDR	140 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9° 4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°
Iris Type	Fixed

Illuminator

Supplement Light Type	White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	Hik-Connect (proactive mode also supports), Hik-central Professional
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3

Mobile Communication

Frequency	DS-2XS6A47G1-L/4G: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800MHz DS-2XS6A47G1-L/4G (US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5 DS-2XS6A47G1-L/4G (LA): LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900MHz DS-2XS6A47G1-L/4G (JP): LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26/28 WCDMA: Band1/6/8/19
SIM Card Type	MicroSIM
Standard	DS-2XS6A47G1-L/4G: LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A47G1-L/4G (US): LTE-FDD/WCDMA DS-2XS6A47G1-L/4G (LA): LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A47G1-L/4G (JP): LTE-TDD/LTE-FDD/WCDMA


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Interface

Audio	1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage
Alarm	1 input(s), 1 output(s) (max. 12 VDC, 1 A)

Event

Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection

General

General Function	Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	Other
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	263.5 × 224.3 × 128.7 mm (10.4" × 8.8" × 5.1")

Approval

Protection	Camera: IP67 (IEC 60529-2013)
Safety	CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) LOA (IEC/EN 60950-1)

High quality imaging with 2560 × 1440@ 15 fps resolution
24/7 Colorful imaging
Clear imaging against strong back light due to 130 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
Camera: Water and dust resistant (IP67)
Built-in 64 GB eMMC storage

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2XS6A47G1-LS/4G(2.8mm)
Net Weight	2.265
Gross Weight	3.233

Key Parameter

Case type	Bullet
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	ColorVu
Illumination Distance	21-50m
Wireless Network	4G
Storage Type	SD Card, EMMC
AI	Perimeter Protection
Local Output	N/A

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Camera Module

WDR	140 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9° 4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°
Iris Type	Fixed

Illuminator

Supplement Light Type	White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	Hik-Connect (proactive mode also supports), Hik-central Professional
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3

Mobile Communication

Frequency	DS-2XS6A47G1-L/4G: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800MHz DS-2XS6A47G1-L/4G (US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5 DS-2XS6A47G1-L/4G (LA): LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900MHz DS-2XS6A47G1-L/4G (JP): LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26/28 WCDMA: Band1/6/8/19
SIM Card Type	MicroSIM
Standard	DS-2XS6A47G1-L/4G: LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A47G1-L/4G (US): LTE-FDD/WCDMA DS-2XS6A47G1-L/4G (LA): LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A47G1-L/4G (JP): LTE-TDD/LTE-FDD/WCDMA


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Interface

Audio	1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage
Alarm	1 input(s), 1 output(s) (max. 12 VDC, 1 A)

Event

Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection

General

General Function	Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	Other
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	263.5 × 224.3 × 128.7 mm (10.4" × 8.8" × 5.1")

Approval

Protection	Camera: IP67 (IEC 60529-2013)
Safety	CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) LOA (IEC/EN 60950-1)
