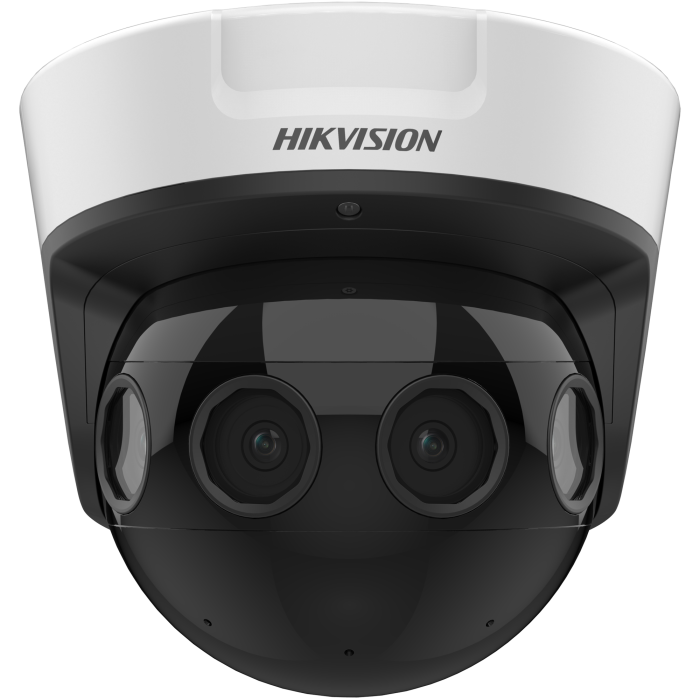

IP camera DS-2CD6924G0-IHSY 8MP f2.8mm panoramic dome white

SKU: 311324825

IP camera Hikvision DS-2CD6924G0-IHSY 8MP f2.8mm 180° PanoVu IR 20mIP67 IK10 Panoramic Dome White

Retail price:

€ 2,590.86

€ 2,089.40 + VAT

Out of stock

Tallinn: Sold Out

Tartu: Sold Out

Central Tallinn: Sold Out

Jõhvi: Sold Out

Latvia: 1 pcs

Notify me

180° splicing image to present all scenes that covered by the camera
Built-in heater, ultra-low temperature start up to -40 °C (-40 °F)
Water and dust resistant (IP67) and vandal proof (IK10)
Smart human density counting and abnormal event detection to increase public area safety

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD6924G0-IHSY(2.8mm)(C)
Net Weight	3.4
Gross Weight	5.36

Key Parameter

Case type	Panoramic Dome
Resolution	8 MP
Lens Type	Multi-Lens
Low-Light Imaging	Darkfighter
Illumination Distance	21-50m, 0-20m
Wireless Network	N/A
Storage Type	SD Card
AI	Yes
Local Output	N/A

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.009 Lux @ (F1.6, AGC ON) B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Day & Night	IR cut filter, Blue glass module to reduce ghost phenomenon
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 90°

Camera Module

WDR	DWDR, 120 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 180°, vertical FOV 90°

Illuminator

Supplement Light Type	IR, four IR LEDs
Supplement Light Range	Up to 20 m

Video

Video Bit Rate	32 Kbps to 64 Mbps
Main Stream	Panorama+ePTZ mode: Panorama channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) ePTZ channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Panorama mode: 50 Hz: 25 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) 60 Hz: 30 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) Original mode: 50 Hz: 25 fps (1920× 1080) 60 Hz: 30 fps (1920× 1080)

Video Bit Rate

32 Kbps to 64 Mbps

Main Stream

Panorama+ePTZ mode:
Panorama channel:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
ePTZ channel:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Panorama mode:
50 Hz: 25 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)
60 Hz: 30 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)
Original mode:
50 Hz: 25 fps (1920× 1080)
60 Hz: 30 fps (1920× 1080)

Network

Simultaneous Live View	Up to 20 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS1.1, TLS 1.2, TLS1.3


Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger

Interface

Audio	1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm	2 inputs, 2 outputs (max. 24 VDC, 1 A)

Event

Basic Event	Motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception, unattended baggage detection,object removal detection (Only panorama mode supports)

General

General Function	Anti-flicker, heartbeat, mirror (only original mode and panorama mode supports), password protection, watermark, IP address filter, pixel counter (only panorama mode supports)
Storage Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC, 24 VAC
Startup and Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	190 mm × 208 mm × 207 mm (7.5" × 8.2" × 8.1")

Approval

Anti-Corrosion Protection	-Y: NEMA 4X (NEMA 250-2018)
Protection	IP67: IEC 60529-2013, IK10: IEC 62262:2002
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

180° splicing image to present all scenes that covered by the camera
Built-in heater, ultra-low temperature start up to -40 °C (-40 °F)
Water and dust resistant (IP67) and vandal proof (IK10)
Smart human density counting and abnormal event detection to increase public area safety

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD6924G0-IHSY(2.8mm)(C)
Net Weight	3.4
Gross Weight	5.36

Key Parameter

Case type	Panoramic Dome
Resolution	8 MP
Lens Type	Multi-Lens
Low-Light Imaging	Darkfighter
Illumination Distance	21-50m, 0-20m
Wireless Network	N/A
Storage Type	SD Card
AI	Yes
Local Output	N/A

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.009 Lux @ (F1.6, AGC ON) B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Day & Night	IR cut filter, Blue glass module to reduce ghost phenomenon
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 90°

Camera Module

WDR	DWDR, 120 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 180°, vertical FOV 90°

Illuminator

Supplement Light Type	IR, four IR LEDs
Supplement Light Range	Up to 20 m

Video

Video Bit Rate	32 Kbps to 64 Mbps
Main Stream	Panorama+ePTZ mode: Panorama channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) ePTZ channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Panorama mode: 50 Hz: 25 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) 60 Hz: 30 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) Original mode: 50 Hz: 25 fps (1920× 1080) 60 Hz: 30 fps (1920× 1080)

Video Bit Rate

32 Kbps to 64 Mbps

Main Stream

Network

Simultaneous Live View	Up to 20 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS1.1, TLS 1.2, TLS1.3


Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger

Interface

Audio	1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm	2 inputs, 2 outputs (max. 24 VDC, 1 A)

Event

Basic Event	Motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception, unattended baggage detection,object removal detection (Only panorama mode supports)

General

General Function	Anti-flicker, heartbeat, mirror (only original mode and panorama mode supports), password protection, watermark, IP address filter, pixel counter (only panorama mode supports)
Storage Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC, 24 VAC
Startup and Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	190 mm × 208 mm × 207 mm (7.5" × 8.2" × 8.1")

Approval

Anti-Corrosion Protection	-Y: NEMA 4X (NEMA 250-2018)
Protection	IP67: IEC 60529-2013, IK10: IEC 62262:2002
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
