IP Camera DS-2CD6425G1-20 2MP 3.7mm 8m white

SKU: 311318352

6425G0

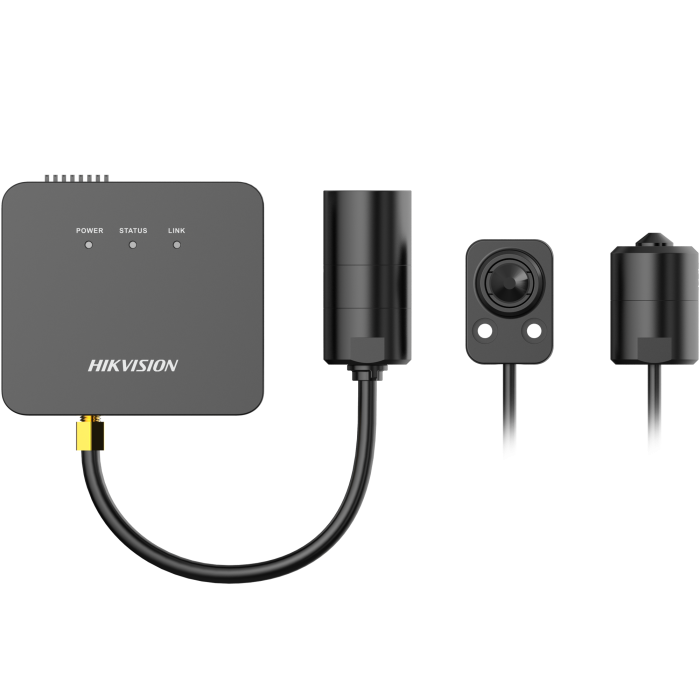

IP camera Hikvision DS-2CD6425G1-20 2MP 3.7mm 8m

Retail price:

€ 745.02

€ 610.67 + VAT

In stock

Tallinn: 10+ psc.

Tartu: Sold Out

Central Tallinn: Sold Out

Latvia: Sold Out

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images

Base Attributes

Brand	Hikvision
Net Weight	1.12
Gross Weight	1.12

Key Parameter

Case type	Specialty
Resolution	2 MP
Lens Type	Fixed Lens
Low-Light Imaging	Normal
Illumination Distance	N/A, N/A
Wireless Network	N/A
Storage Type	SD Card
AI	N/A
Local Output	N/A

Camera

Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON)

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	L10/L20 model: 2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3° 3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3° L30 model: 2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7° 4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
Iris Type	Fixed

Video

Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Bit Rate Control	CVR/BVR

Network

Simultaneous Live View	Up to 15 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host	Up to 32 users 3 level: administrator, operator, and user
Client	iVMS-4200, Hik-Connect


Day/Night Switch	Day, Night, Auto, Schedule

Interface

Audio	1 input (line in), 1 output (line out)
On-Board Storage	Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
Alarm	1 input, 1 output (max. 12 VDC, 30 mA)

Event

Basic Event	Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
Smart Event	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection

General

General Function	One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC, 24 VAC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0") L10: Ø26 mm × 40 mm (Ø1.0" × 1.6") L20: 37 mm × 26 mm × 25 mm (1.5" × 1.0" × 1.0") L30: Ø26 mm × 50 mm (Ø1.0" × 2.0")

Approval

Safety	UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
