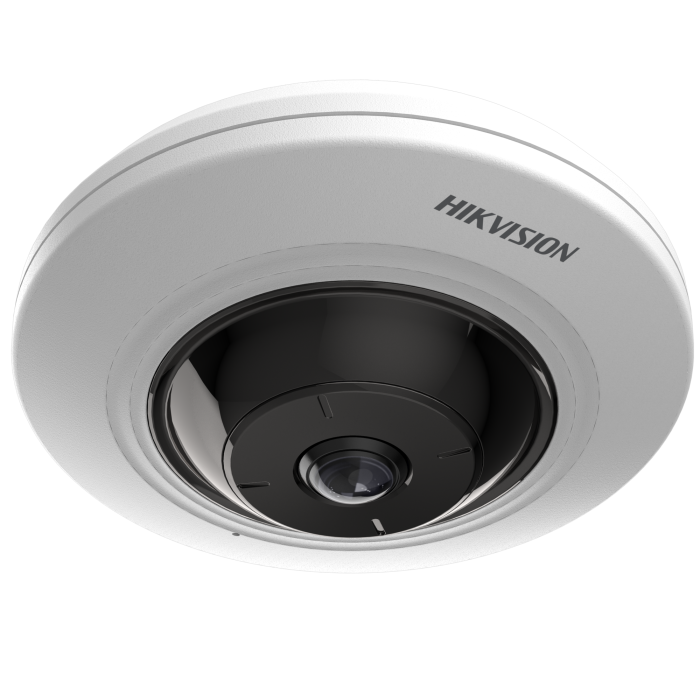

IP camera DS-2CD2955G0-ISU 5MP f1.05mm fisheye white
SKU:
311322801
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- 180° fisheye view
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
Retail price:
€ 701.21
€ 565.49
+ VAT
+ VAT
€ 701.21
€ 565.49
+ VAT
Retail price:
+ VAT
+ VAT
As low as:
+ VAT
In stock
Tallinn:
10+ pcs.
Tartu:
Central Tallinn:
Jõhvi:
Latvia:
10+ pcs.
(231.2 KB)
(260.3 KB)
(1177.9 KB)
(3066.7 KB)
(2780.7 KB)
Base Attributes
| Manufacturer Code | DS-2CD2955G0-ISU(1.05mm) |
|---|---|
| Net Weight | 0.325 |
| Gross Weight | 0.502 |
Key Parameter
| Case type | Fisheye |
|---|---|
| Resolution | 5 MP |
| Lens Type | Fixed Lens |
| Illumination Distance | 0-20m |
| Wireless Network | N/A |
| Storage Type | SD Card |
| AI | N/A |
| Local Output | N/A |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | NA |
Camera Module
| WDR | 120 dB |
|---|
Lens
| Focal Length & FOV | 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180° |
|---|---|
| Iris Type | Fixed |
| Depth of Field | 0.1 m to ∞ |
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | Up to 8 m |
| Smart Supplement Light | Yes |
Video
| Video Bit Rate | 32 Kbps to 16 Mbps |
|---|---|
| Main Stream | 50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960） 60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960） |
Network
| Simultaneous Live View | Up to 6 channels |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Fisheye Display
| Display Mode | Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
|---|
Interface
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 A) |
Event
| Basic Event | Motion detection, video tampering alarm, exception |
|---|---|
| Smart Event | Line crossing detection, intrusion detection |
General
| Brand | HIKVISION |
|---|---|
| General Function | Heartbeat,anti-banding,mirror,password protection |
| Storage Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Power Supply | PoE, 12 VDC |
| Startup and Operating Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Dimension | Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6") |
Approval
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
|---|
Base Attributes
| Manufacturer Code | DS-2CD2955G0-ISU(1.05mm) |
|---|---|
| Net Weight | 0.325 |
| Gross Weight | 0.502 |
Key Parameter
| Case type | Fisheye |
|---|---|
| Resolution | 5 MP |
| Lens Type | Fixed Lens |
| Illumination Distance | 0-20m |
| Wireless Network | N/A |
| Storage Type | SD Card |
| AI | N/A |
| Local Output | N/A |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | NA |
Camera Module
| WDR | 120 dB |
|---|
Lens
| Focal Length & FOV | 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180° |
|---|---|
| Iris Type | Fixed |
| Depth of Field | 0.1 m to ∞ |
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | Up to 8 m |
| Smart Supplement Light | Yes |
Video
| Video Bit Rate | 32 Kbps to 16 Mbps |
|---|---|
| Main Stream | 50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960） 60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960） |
Network
| Simultaneous Live View | Up to 6 channels |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Fisheye Display
| Display Mode | Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
|---|
Interface
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 A) |
Event
| Basic Event | Motion detection, video tampering alarm, exception |
|---|---|
| Smart Event | Line crossing detection, intrusion detection |
General
| Brand | HIKVISION |
|---|---|
| General Function | Heartbeat,anti-banding,mirror,password protection |
| Storage Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Power Supply | PoE, 12 VDC |
| Startup and Operating Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Dimension | Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6") |
Approval
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
|---|
