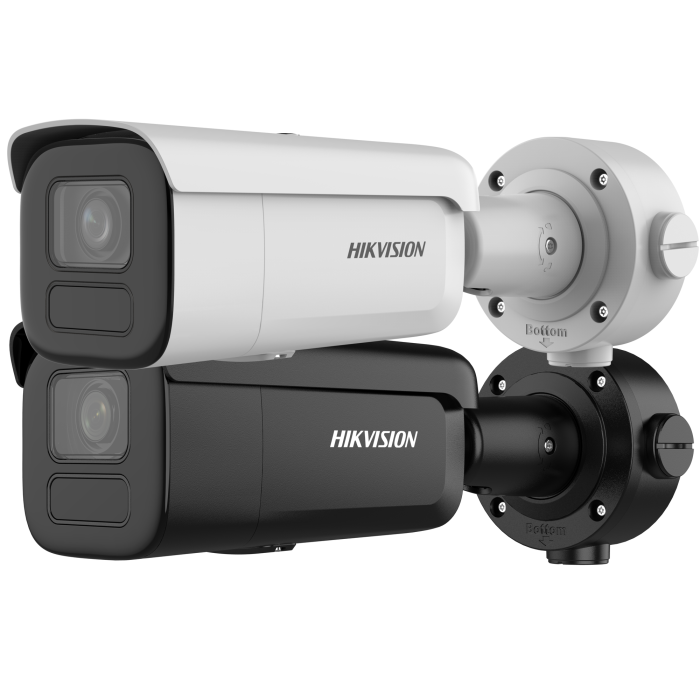

IP camera DS-2CD2686G2HT-IZS 8MP f2.8-12mm bullet white

IP camera DS-2CD2686G2HT-IZS 8MP f2.8-12mm bullet white

SKU: 311324679

IP camera Hikvision DS-2CD2686G2HT-IZS 8MP f2.8-12mm Powered by Darkfighter Motorized Varifocal IP67 IK10 Bullet White

Retail price:

€ 577.20

€ 465.48 + VAT

In stock

Tallinn: 10+ pcs.

Tartu: 3 pcs.

Central Tallinn: Sold Out

Latvia: 10+ pcs

High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67) and vandal resistant (IK10)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD2686G2HT-IZS(2.8-12mm)(eF)
Net Weight	1.525
Gross Weight	2.553

Key Parameter

Case type	Bullet
Resolution	8 MP
Lens Type	Fixed Lens
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	51-100m
Wireless Network	N/A
Storage Type	SD Card
AI	Yes
Local Output	N/A

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Iris Type	Fixed
Depth of Field	1 m to ∞

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event	Scene change detection

Deep Learning Function

Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")

Approval

Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
