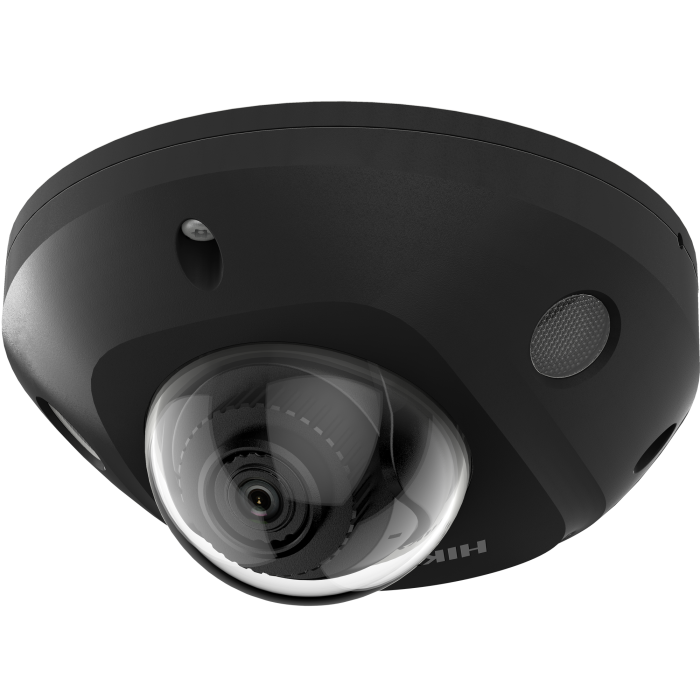

IP camera DS-2CD2546G2-IS 4MP f2.8mm mini dome black

IP camera DS-2CD2546G2-IS 4MP f2.8mm mini dome black

SKU: 311318145

DS-2CD2523G2-IS-43--

IP camera Hikvision DS-2CD2546G2-IS 4MP f2.8mm Acusense Built-in Mic IP67 IK08 Mini Dome Black

Retail price:

€ 353.36

€ 284.97 + VAT

In stock

Tallinn: 10+ pcs.

Tartu: 10+ pcs.

Central Tallinn: Sold Out

Latvia: Sold Out

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Focusing on human and vehicle classification based on deep learning
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
-S: audio and alarm interface available
-W: Realizing Wi-Fi connection and easy installation
Water and dust resistant IP67 and vandal proof IK08

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD2546G2-IS(2.8mm)(C)(Black)
Net Weight	0.375
Gross Weight	0.61

Key Parameter

Case type	Dome
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	21-50m
Wireless Network	Wi-Fi, N/A
Storage Type	SD Card
AI	Yes, Perimeter Protection
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5° 4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°
Iris Type	Fixed
Depth of Field	2.8 mm: 1.6 m to ∞ 4 mm: 2.1 m to ∞

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect, Hik-Central
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Wi-Fi

Frequency Range	-W: 2.4 GHz to 2.4835 GHz
Modulation	-W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wireless Range	-W: Up to 80 m (The performance varies based on actual environment)


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Interface

Audio	-IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone	Yes
Alarm	-IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA)

Event

Basic Event	Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event	Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) Scene change detection

Deep Learning Function

Face Capture	Yes

General

General Function	Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")

Approval

Protection	IP67 (IEC 60529-2013) IK8 (IEC 62262:2002)
Safety	UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1)
