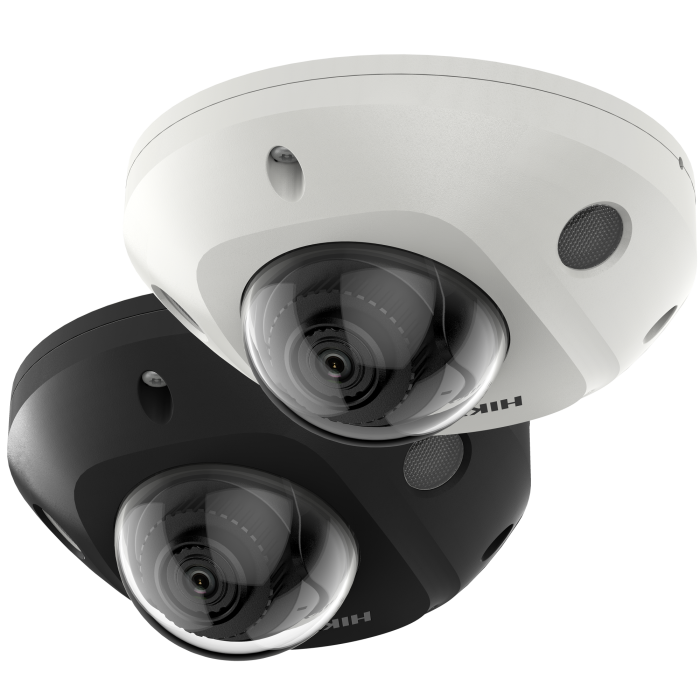

IP camera DS-2CD2543G2-IS 4MP 2.8mm mini dome black

IP camera DS-2CD2543G2-IS 4MP 2.8mm mini dome black

SKU: 311318137

DS-2CD2523G2-IS-43--

IP camera Hikvision DS-2CD2543G2-IS 2.8mm 4MP AcuSense Built-in Mic Fixed Mini Dome, Black

Retail price:

€ 259.49

€ 209.27 + VAT

In stock

Tallinn: 5 pcs.

Tartu: Sold Out

Central Tallinn: Sold Out

Latvia: Sold Out

High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
-S: audio and alarm interface available
-W: Realizing Wi-Fi connection and easy installation
Water and dust resistant (IP67) and vandal resistant (IK08)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD2543G2-IS(2.8mm)/BLACK
Net Weight	0.375
Gross Weight	0.61

Key Parameter

Case type	Dome
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	Normal
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	SD Card
AI	Perimeter Protection
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2 mm, horizontal FOV 128°, vertical FOV 75°, diagonal FOV 147° 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° 4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°
Iris Type	Fixed
Depth of Field	2 mm: 0.6 m to ∞ 2.8 mm: 1.4 m to ∞ 4 mm: 1.6 m to ∞

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect, Hik-Central
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Wi-Fi

Frequency Range	-W: 2.4 GHz to 2.4835 GHz
Modulation	-W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wireless Range	-W: Up to 80 m (The performance varies based on actual environment)


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Interface

Audio	-IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone	Yes
Alarm	-IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA)

Event

Basic Event	Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event	Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection

General

General Function	Anti-flicker, heartbeat, password reset via email, pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")

Approval

Protection	IP67 (IEC 60529-2013) IK8 (IEC 62262:2002)
Safety	UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
