IP camera DS-2CD2347G2P-LSU/SL 4MP f2.8mm turret white

IP camera DS-2CD2347G2P-LSU/SL 4MP f2.8mm turret white

SKU: 311320486

S-4--

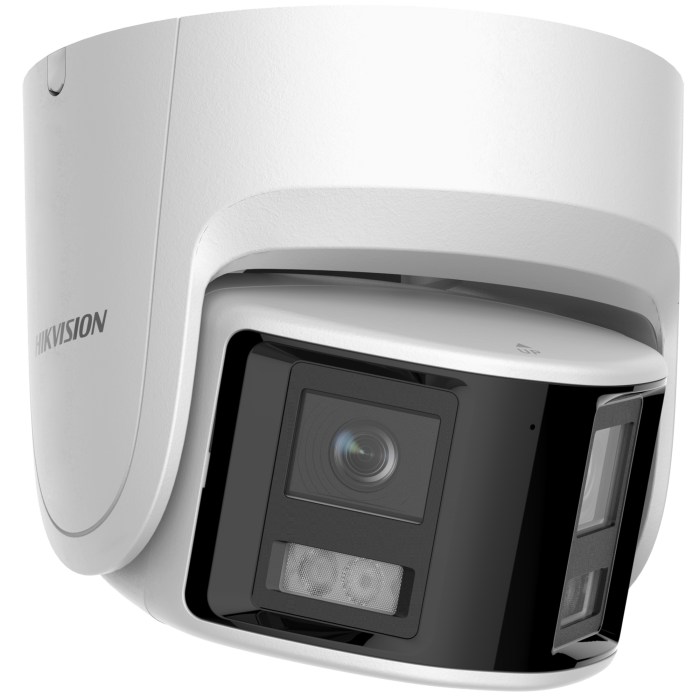

IP camera Hikvision DS-2CD2347G2P-LSU/SL 4MP f2.8mm Panoramic ColorVu IP67 Turret White

Retail price:

€ 457.51

€ 368.96 + VAT

In stock

Tallinn: 4 pcs.

Tartu: 9 pcs.

Central Tallinn: Sold Out

Latvia: Sold Out

High quality imaging with 4 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD2347G2P-LSU/SL(2.8mm)(C)
Net Weight	0.9
Gross Weight	1.68

Key Parameter

Case type	Turret
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	ColorVu
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	SD Card
AI	Perimeter Protection(Strobe Light and Audio)
Local Output	N/A

Camera

Image Sensor	2 × 1/2.5" Progressive Scan CMOS
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Angle Adjustment	Pan: 0° to 30°,tilt: -75° to 75°

Camera Module

WDR	130 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Iris Type	Fixed
Depth of Field	2 m to ∞

Illuminator

Supplement Light Type	White Light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (3040 × 1368) 60 Hz: 24 fps (3040 × 1368)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	Yes
Built-in Speaker	Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Alarm	1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Smart Event	Scene change detection

Deep Learning Function

Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Anti-banding, heartbeat, flash log, pixel counter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø140 mm × 145.6 mm (Ø5.5" × 5.7")

Approval

Protection	IP67: IEC 60529-2013
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
