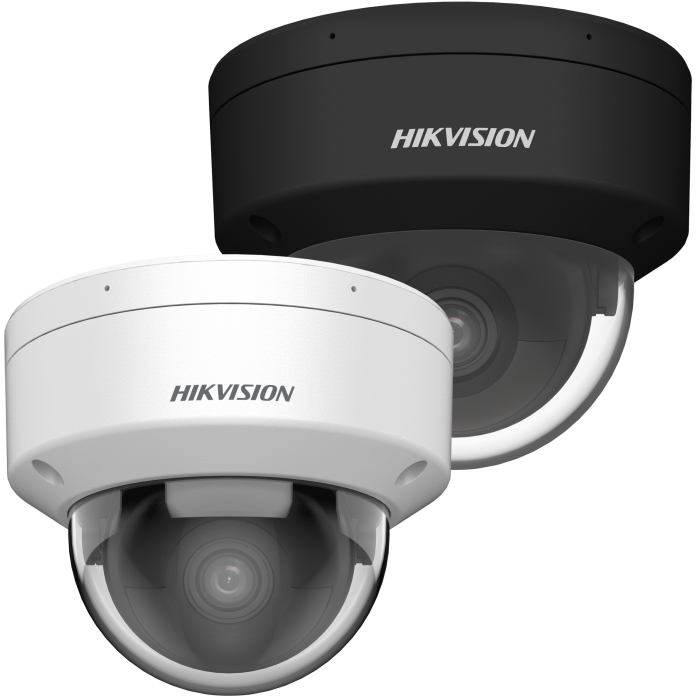

IP camera DS-2CD2146G2H-ISU 2.8mm 4MP dome white

SKU: 311324127

61---

IP camera Hikvision DS-2CD2146G2H-ISU(2.8mm) 4 MP Powered by Darkfighter Fixed Dome

Retail price:

€ 269.58

€ 220.97 + VAT

In stock

Tallinn: 10+ psc.

Tartu: 10+ psc.

Central Tallinn: 10+ psc.

Latvia: 10+ psc

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time auto security(-SU)
Water and dust resistant (IP67) and vandal-resistant (IK10)

Base Attributes

Brand	Hikvision
Net Weight	0.605
Gross Weight	0.86

Key Parameter

Case type	Dome
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	Powered by Darkfighter
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	SD Card
AI	Yes
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Iris Type	Fixed
Depth of Field	2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect, Hik-Central
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Interface

Audio	-SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -SU: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	-SU: Yes
Alarm	-SU: 1 input, 1 output (max. 12 VDC, 30 mA)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Scene change detection

Deep Learning Function

Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")

Approval

Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
