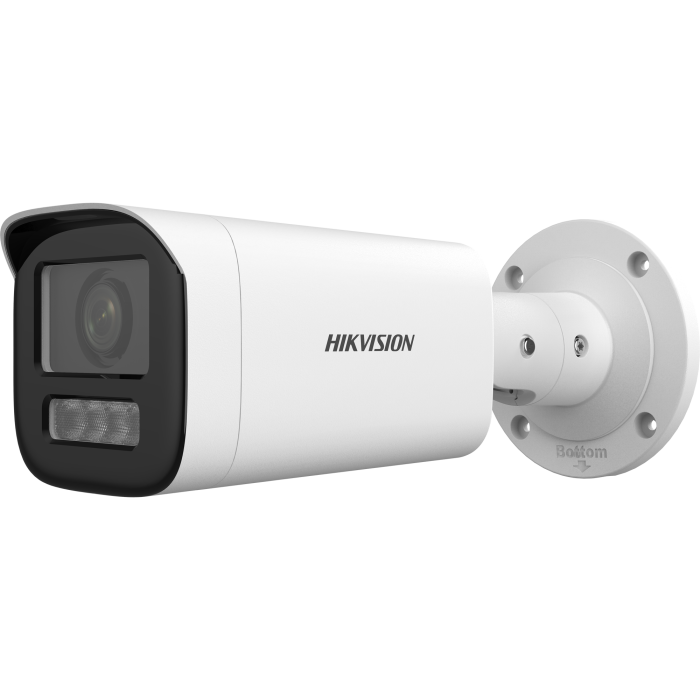

IP camera DS-2CD1643G2-LIZSU 2.8-12mm 4MP bullet white

SKU: 311325222

DS-2CD1663G2-LIZSU-92----

IP camera Hikvision DS-2CD1643G2-LIZSU(2.8-12mm) 4MP Dual Light MD 2.0 Varifocal Bullet

Retail price:

€ 315.87

€ 258.91 + VAT

In stock

Tallinn: 7 psc.

Tartu: 1 psc.

Central Tallinn: Sold Out

Latvia: Sold Out

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Built-in microphone for real-time audio security
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67)

Base Attributes

Brand	Hikvision
Net Weight	0.7
Gross Weight	1.1

Key Parameter

Case type	Bullet
Resolution	4 MP
Lens Type	Motorized Varifocal Lens
Low-Light Imaging	Normal
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	SD Card
AI	Yes
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
Iris Type	Fixed

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Up to 50 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 16 Mbps
Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Bit Rate Control	CBR,VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Day/Night Switch	Day,Night,Auto,Schedule
SNR	≥ 52 dB

Interface

Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	Yes,1 built-in microphone
Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

General

General Function	Heartbeat,mirror,password reset via email,password protection,anti-banding
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø105 mm × 252 mm (Ø4.13" × 9.92")

Approval

Protection	IP67: IEC 60529-2013
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
