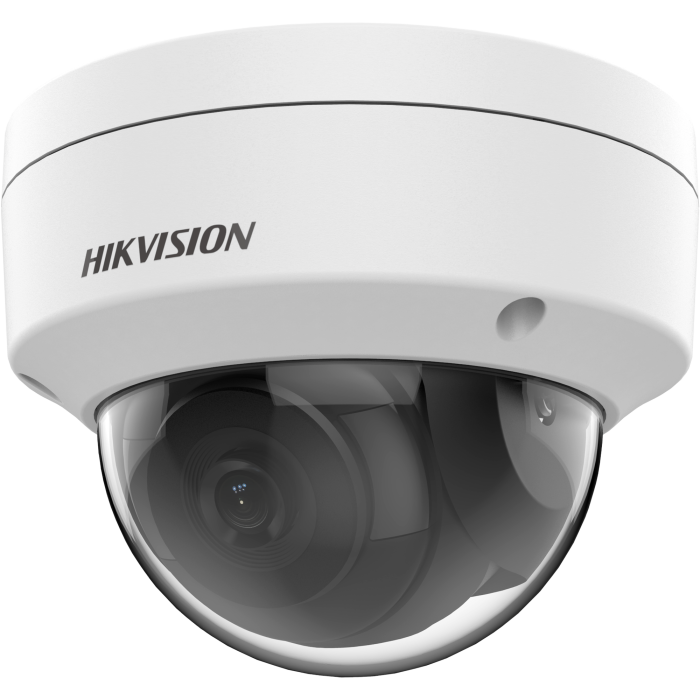

IP camera DS-2CD1143G2-I 4MP f2.8mm dome white

IP camera DS-2CD1143G2-I 4MP f2.8mm dome white

SKU: 311320709

DS-2CD2123G2-IS-18---

IP camera Hikvision DS-2CD1143G2-I 4MP f2.8mm MD2.0 IP67 IK10 Dome White

Retail price:

€ 167.04

€ 134.71 + VAT

In stock

Tallinn: 10+ pcs.

Tartu: Sold Out

Central Tallinn: Sold Out

Latvia: 10+ pcs

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Water and dust resistant (IP67) and vandal resistant (IK10)
Clear imaging even with strong back lighting due to 120 dB WDR
Efficient H.265+ compression technology
EXIR 2.0: advanced infrared technology with long IR range

Base Attributes

Brand	Hikvision
Manufacturer Code	DS-2CD1143G2-I(2.8mm)
Net Weight	0.4
Gross Weight	0.569

Key Parameter

Case type	Dome
Resolution	4 MP
Lens Type	Fixed Lens
Low-Light Imaging	Normal
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	N/A
AI	Yes
Local Output	N/A

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°

Camera Module

WDR	120 dB

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Iris Type	Fixed

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 levels: administrator, operator, and user
Client	iVMS-4200, Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

General

General Function	Heartbeat, anti-banding, mirror, password protection, password reset via email
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension	Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3")

Approval

Protection	IP67: IEC 60529-2013 IK10: IEC 62262: 2002
Safety	UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
