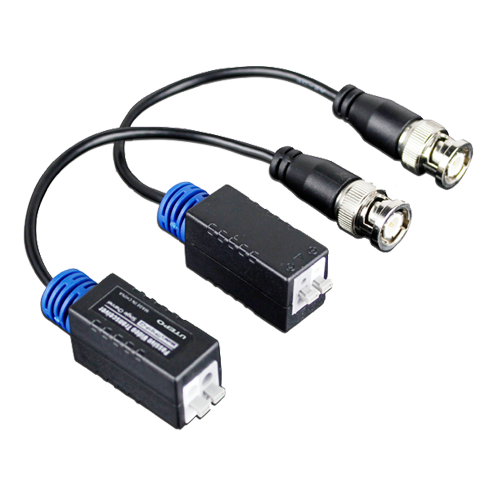

Passiivne keerupaari saatja UTEPO
| Item | UTP101P-HD |
| Video Port | 1 channel |
| Maximum Transmission Distance
(with passive product) |
HDCVI-720P:500m;HDCVI-1080P:150m;
HDTVI-720P/1080P: 240m; AHD-720P/960P: 500m; AHD-1080P:420m Analog Video:600m; |
| Coaxial Video Port | Male BNC Port |
| Twisted-pair Video Port | 2-channel screw push terminal |
| Video Compatibility | HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video |
| Bandwidth | 0～75MHz |
| Anti-interference | >60dB |
| Coaxial Port Protection | 2KV Per: IEC61000-4-5 |
| Twisted-pair Port Protection | 2KV(different mode) 4KV(common mode)
Per: IEC61000-4-5 |
| ESD | Level 3,1a Contact Discharge,
Level 3,1b Air Discharge |
| Working Temperature | -10～55℃ |
| Storage Temperature | -20℃~70℃ |
| Humidity（Non-condensing） | 0～95% |
Transmission distance up to 500 meters with passive transmitter; Transmission distance up to 650 meters with active transmitter; Plug-and-play; Real-time and stable: Strong surge protection, ESD and lighting protection.
√ Passive, no power required;
√ Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog transmission result;
√ 500m matches the passive transceiver; 650m matches active transceiver;
√ Excellent anti-interference，surge protection, ESD and lighting protection capability;
√ ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects;
√ Bayonet Nut Connector (BNC); press-fitting UTP terminal.
