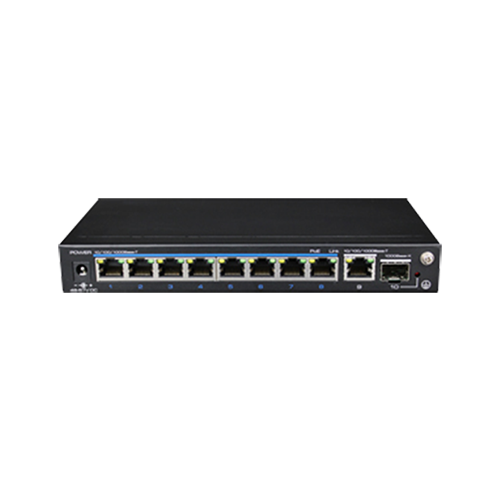

Switch 8 porti + 1 x SFP UTEPO
| Model | UTP3-GSW0802-TSP120 |
| Downstream Ports | 8* 10/100/1000Base-T (PoE) |
| Uplink Ports | 1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port |
| Network Standard | IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3Z、EEE802.3 X |
| Switch Capacity | 20Gbps |
| Throughput | 14Mpps |
| Switch Processing Scheme | Store and Forward |
| Memory Buffer | 1M |
| MAC Table | 4K |
| PoE Standard | 802.3af/at(PSE) |
| PSE Type | End-span |
| Power Pin Assignment | 1/2(+)，3/6(-) |
| PoE Power Output | 54V DC , 30 watts max |
| PoE Budge | 120 watts max |
| Lightning protection | 6KV Execute：IEC61000-4-5 |
| ESD | 6KV Contact discharge |
| 8KV Air discharge | |
| Execute：IEC61000-4-2 | |
| Power Supply | DC 48V~57V |
| Power Dissipation | ＜5W |
| Work temperature | -10℃~45℃ |
| Storage temperature | -40℃~85℃ |
| Humidity(Non-condensing) | 5%-95% |
| Dimension（L×W×H） | 200mm×101.8mm×27mm |
| Weight | 500g |
| Regulator | CE、FCC、ROHS |
Switch 8 porti
