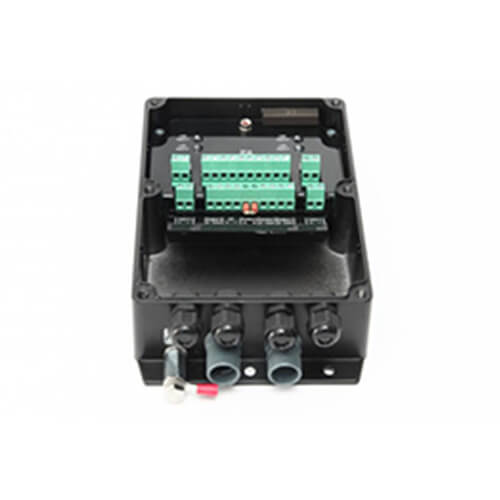

Forteza Tribo-S 4 tsooniline kontroller

Tootekood: Tribo-S4 Kategooria:
Kuumakse al. 92.74€ / 60 kuud
  • Süsteem on mõeldud igat tüüpi piirdeaedade kaitsmiseks üle ronimise või purunemise eest
  • 4 relee väljundit
  • Max 300 m
  • Windows, Androidi konfiguratsioon

3,037.80€

Tallinna laos: 0
Tartu laos: 0

Kirjeldus

The maximum length of the sensitive element (SE-86) in a single zone up to 300 m;
The maximum length of the non-sensitive element (NON-SE) in a single zone up to 300 m;
Entrance areas 2 or 4 independent zones;
Relay outputs 2 or 4 independent outputs;
Integrity control cables, common Relay output;
Power source 10-28 V (DC);
With voltage drop below 9,5 V the protection system goes into the “Alarm” mod.;
Current consumption < 25 mA;
Operating temperature from -40 °C to +50 °C;
Alarm, control integrity, tamper output dry relay contact;
The duration of alarm signal is 1s minimum;
Fixed resistor value to control integrity of sensitive and non-sensitive elements;
Fixing on the fence with plastic ties;
Compatibility any alarm control panel;
IP class IP55;
Set up of equipment using an Android device (tablet, phone) is done two-ways:
1. Using converter RS 485-USB through connection cable.
2. Using converter FORTEZA RS-BL through BLUETOOTH network or connection cable.
