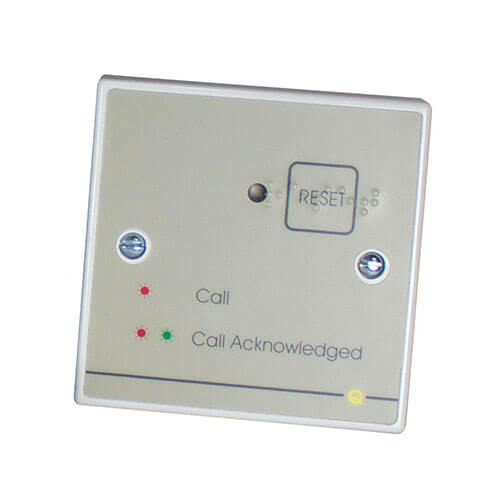

Quantec Accessible Toilet Reset Point c/w Confidence Sounder
QT605S
- An addressable Quantec reset point c/w confidence sounder specifically designed for use in BS8300 compliant accessible toilet alarm applications.
- Includes a red/green reassurance LED and RESET button with Braille text for cancelling calls.
- Can be interfaced to a Quantec ceiling pull (installed inside the WC) and slave overdoor light c/w sounder (installed outside the WC).
- Will generate a Standard call tone when its slave ceiling pull is activated and an intermittent ‘call acknowledgement’ tone when the call is accepted at a Quantec display (to let users know help is on the way).
- Also available as part of our QT951 Accessible Toilet Alarm kit.
| Power requirements | Nominal 24V DC (from Quantec Controller/Network) |
| Quiescent current | less than 5mA |
| Indicators | Red/green confidence LED. |
| Controls | Reset button. |
| Connections | Net +: Net -; R; G; L+; SW |
| Expansion connections | R (red), G (green), L+ (local +Ve) and SW (switch) terminals allow the connection of a slave ceiling pull and slave overdoor light c/w sounder. |
| Onboard 6.35mm Remote Jack Socket | No. |
| Onboard Sounder | Yes – sounds Quantec’s standard call tone when its slave ceiling pull is activated and a slow intermittent tone when the call is Accepted at a Quantec display. |
| Onboard Infrared Receiver | No. |
| Product dimensions (mm) | 87 W x 87 H x 23 D mm. Can be mounted on a standard UK 25mm single gang flush or surface back box. |
| Construction & finish | Plastic. |
| IP Rating | IP40 |
| Weight | 66g. |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
