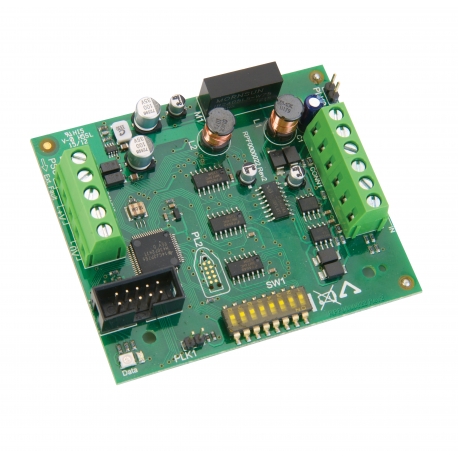

Adresseeritava ZFP keskuse/repiiteri võrgukaart, C-TEC

Type RS485.
Indicators Network Status LEDs.
Connections From node to node, connect A (IN) to A (OUT), B (IN) to B (OUT) and C (IN) to C (OUT). Terminals A and B are for data comms and terminal C is for earth screens.
Product dimensions (mm) TBC.
Weight TBC.
Network specification Multi-path, fault-tolerant RS485. Max. 126 network nodes (up to 64 ZFP mains & 64 Compact Controllers); Max. cable length of network: 128km; Max. cable length between nodes: 1km. For standard non-fault tolerant network specs see main instructions.
Notes Each node requires a unique ID number (1-126) which is set via Dip switch (SW1) on the ZHN PCB.
