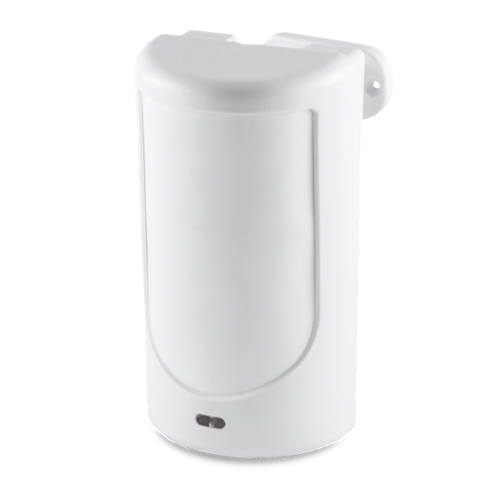

Wireless motion detector EWP3

Wireless motion detector EWP3

New ELDES motion sensor EWP3 is a wireless device intended to secure the
premises by motion detection. New generation ELDES wireless technology
enables to reach breakthrough wireless distance of 3000 m in open spaces
with ESIM384. Wireless devices battery lifetime increased 2x and reached 36
months operating time.

In addition, the device comes equipped with a built-in Dual PIR sensor, the PET
immunity feature and 2 built-in tamper switches for EWP3 sabotage detection.

• Built-in dual element passive infrared (PIR) sensor
• Built-in temperature sensor
• Built-in temperature sensor
• 2 built-in tamper switches: on the front and on the back of the PCB
• Pet-immune, up to 40kg
• Intelligent power saving mode

Battery type 3V lithium CR123A type,CR17345 (IEC) / 5018LC (ANSl/ NEDA)
Number of batteries 2
Battery operation time up to 36 months*
Wireless band ISM868 or ISM915**
Wireless communication range Up to 3000m (-9843ft) in open areas
Detection coverage angle 90 °
Maximum detection distance 11 m (36.09ft)
PET immunity up to 40kg (88.1bs)
Range of operating temperatures -10… +55°C (+14… +131°F)
Humidity 0-90% RH 0… +40°[ (0-90% RH +32… +1 04°F) (non-condensing)
Dimensions 24x 67x 58mm (4.88x 2.64x 2.28in)
Compatible with alarm systems ELDES wireless

* The operation time might vary in different
conditions
** Depends on region

Specification
