Description

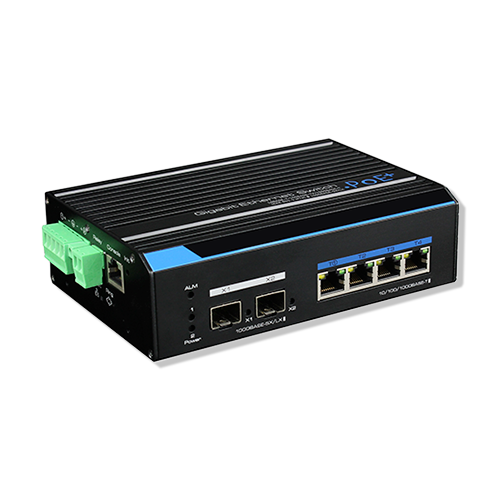

Manable switch 4 ports PoE + 2 Uplink UTEPO
| Item | UTP7304GE-POE | |
| Power | Power supply | Power adaptor |
| Voltage range | 48～57VDC | |
| Comsumption | Self comsumption< 30W
Whole PoE output<150W |
|
| Port | Copper Port | T1~T4 RJ45：10/100/1000Base-T
X1~X2 SFP 1000Base-X |
| Distance | RJ45 Ports:0~100m；SFP ports depend on SFP
module |
|
| PoE standard | IEEE802.3 af/at, End-
span; HPoE 60W only support MAXIM chipset NA |
|
| PoE output | T1≦60W T2～T4≦30W
NA |
|
| Console | 1*RJ45-R232 serial port(115200,8,N,1) | |
| Init-key | Short press: restart>5s restore factory settings | |
| One-key fast-ring | Default mode: No ring(can setup on web
management)； Ring mode: Fast ring with SFP X1 and X2 |
|
| Network
switch |
Standard | IEEE 802.3,IEEE 802.3u,IEEE
802.3ab,IEEE802.3z |
| Throughput | 17.9Mpps | |
| Switch fabric | 24Gbps | |
| Buffer | 4Mb | |
| MAC table | 8K | |
| Alarm | Relay alarm | Power no-input,Ethernet link off,PoE link off alarm by
relay turn over |
| Manage | Manage | Layer 2 + PoE Web management |
| Indicator | Power | 2*red LED |
| RJ45 | Link/Acting:Green LED PoE:Yellow LED | |
| SFP | Link:Green LED | |
| Protection | Surge | 6KV:Per：IEC61000-4-5 |
| EMC/EMI | ESD:4 level Per:IEC61000-4-2
RS:4 level Per：IEC61000-4-3 EFT:4 level Per：IEC61000-4-4 CS:3 level Per：IEC61000-4-6 |
|
| Environment | Working temperature | -40～+75℃ |
| Storge temperature | -40～+85℃ | |
| Humidity | 0 ～95% | |
| Mechanical | Dimension(L*W*H) | 157 mm×110 mm×46.5mm |
| Material | Aluminium alloy | |
| Color | Black | |
| Weight | 1000g | |
