Interactive Fire Control Panel IFS7002 – two signal loops

PRODUCT DESCRIPTION

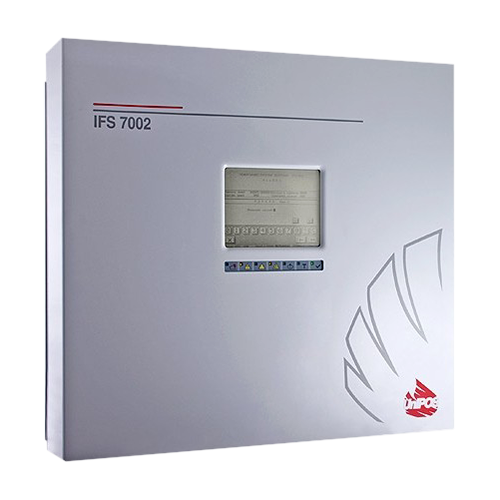

Interactive Fire Control Panel IFS7002

Basic features

– Fire Control Panel and all devices in the loops are fully programmable
– Two-way exchange of data between Fire Control Panel and connected in the lops devices
– Detection of Fault conditions: short circuit or interruption in a loop, removed fire detector or swapped fire detectors, connection of the loop to the grounds
– Two signal loops (branch lines are optional) for connecting of the fire detectors, input and/or output modules, adapters, automatic extinguisher modules
– One power loop for supplying of executive devices
– Automatic addressing of devices avoiding duplication of addresses
– Automatic detection of devices of the outputs
– Network operation of 128 Fire Control Panels and/or repeater panels
– Option for connection to dispatcher control point
– LED indication of the main events and conditions of the Fire Control Panel
– Built-in sounder
– LCD graphic display for visualization of text messages
– Touch screen panel
– Dialogue menus in language required by the customer
– Option for integration of a standard PC keyboard
– Built-in real time clock

Technical data

Fire alarm loops
– signal: 2
– power: 1

Addressable devices in one signal loop: Up to 125
Cross section of the signal loop wire: (0.8-2.5) mm2
Maximum resistance of the signal loop: 100Ω
Number of devices in one branch: Up to 32
Fire alarm zones: Up to 250
Addressable devices in one zone: Up to 60
Response time to activated detector signal: Up to 10 seconds
Registered events by the counter of fire events: Up to 9999
Archive of events: Op to 1023

Power supply:
– mains: 220/230VAC, 50/60Hz
– backup batteries: 2×12 VDC, 18Ah

Current consumption of power supply loop: Up to 1A

Outputs:
– relay 30VDC/1A: 3
– controllable 28V DC/1A: 2
– auxiliary supply 24VDC/1A: 1

Interfaces:
– RS 232 or RS 485: 1
– CAN: 2

Dimensions: 480 x 445 x 100 mm
Weight (batteries not included): 7.1 kg
Operating temperature: Minus 5oC to 40oC
Relative humidity: (93±3) % at 40oC
Degree of protection: IP 40

Downloads:

Instruction of CAN functionality IFS7002

Scheme of CAN topology of IFS7002

Cable description for PC<->IFS7002 connection

Instruction for programming of IFS7002

PC software for IFS7002

Instruction manual for Software for PC connection of IFS7002 system

Instruction Manual – v.11

Brochure for IFS7002 – 2 signal loops
