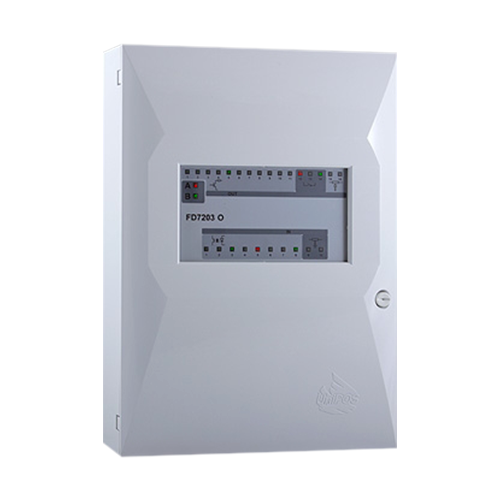

Input-Output Device FD7203 – 10 inputs / 16 outputs

PRODUCT DESCRIPTION

The input-output Device FD7203 – 10 inputs / 16 outputs is designated to produce and send an electrical signal to various devices (lift doors, fans, etc.) in the case of an events and recording external impacts typical for a fire condition or other events. It is compatible with addressable fire control panels IFS7002, supplementing the possibilities of the address systems series IFS7000.

Technical Data

Address loop:
– supply voltage: (15÷30)V DC
– current consumption in duty mode: < 350µA
– current consumption in alarm state: (3±1)mA

Power loop:
– supply voltage: (12÷30)V DC
– current consumption in duty mode: < 35mA
– current consumption in alarm state: up 1A
Inputs: 10 pcs

Electroplated separated programmable: 8 pcs
– activation voltage: (5÷30)V DC

Monitored inputs programmable: 2 pcs
– maximal resistance of the loop: 100 Ω
– short circuit: R input<0,5kΩ
– activated input: 0,6kΩ<R input<1,4kΩ
– duty mode: 1,5kΩ<R input<4,8kΩ
– interruption: 4,8kΩ<R input
– end of line element: 3,6kΩ
Outputs: 16 pcs

Relay with programmable functions: 3 pcs
– type: potential free, switching with programmable functions
– power supply specifications: 30V DC/1A; 125VAC/0,5A

Monitored with programmable functions: 2 pcs
– type: Potential
– power supply specifications: (12÷30)V DC
– peak activation current: 150 mA
– end of line element: 1,0 kΩ

Open collector with programmable functions: 11 pcs
– peak voltage at the output: 30V DC
– peak activation current: 35 mA

Operational temperature range: from minus 5°С to 40°С
Relative humidity resistance (no condensation): ≤95%
Dimensions: (313х218х85) mm
Weight: 1.170 kg
