Hikvision Human Recognition Camera

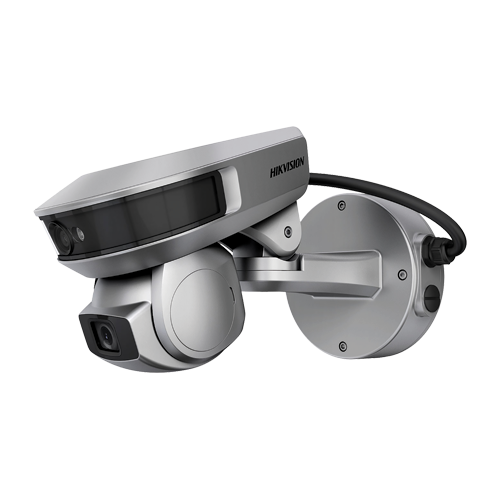

Hikvision iDS-2PT9122IX-DE/S (5-50 mm) (4 mm) PanoVu PT Series 2MP + 2MP Target Capture Camera is able to capture distant view images as well as close-up images with the integration design of distant view camera and tracking PTZ camera. This series of camera can be widely used in the scenes where wide monitoring range and high definition are required, such as the entrance/exit, airport, port, wharf, reservoir, square, park, scenic spot, and station, etc.

Distant View Camera

• 1/2.7″ progressive scan CMOS
• Up to 1920 × 1080 resolution
• Horizontal field of view: 92°
• Min. illumination:
• Color: 0.002 Lux@(F1.0, AGC ON),
• B/W: 0.0005 Lux@(F1.0, AGC ON)

Tracking PTZ Camera

• 1/2.7″ progressive scan CMOS
• Up to 1920 × 1080 resolution
• Horizontal field of view: 61.3°to 6.26°
• Pan and tilt range: 210°(Pan), -22°to 22°(Tilt)
• Min. illumination:
• Color: 0.0035 Lux@(F1.6, AGC ON)
• 0 Lux with IR
• 10× optical zoom, 16× digital zoom

Datasheet_of_iDS-2PT9122IX-DES(5-50mm)(4mm)_20171024
