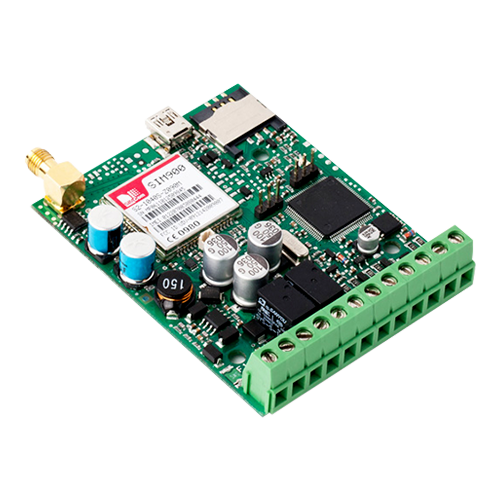

GSM dialler with 2 relay outputs – ESIM252
Monthly payment from 8.13€ / 24 months
ESIM252 is an advanced GSM gateway and remote relay. This device can be connected to any panel with PGM outputs and electrical appliances, where inputs need to be triggered.
ESIM252 lets create distinct scenarios for each input, output, or command you send. Direct call and SMS from/to mobile phone, and transmits standard protocols to alarm receiving center.
- 5 users
- 5 inputs
- 2 relay outputs
- Input matrix routing
- Audio messages
- Pulse counter
- Configuration: USB, SMS, GPRS (Eldes configuration tool)
- Control: SMS, Voice Call
| GMS modem frequency | 850/900/1800/1900 MHz |
| Power supply voltage | 10-24V AC/DC |
| Inputs | 5 |
| Relay output | 2 |
| Output type | NO (relay) |
| C1 output maximum commutating values | 1A/24V DC; 0,5A/125V AC |
| Event buffer | 1000 |
| Authorized users | 5 |
| Ways of configuration | SMS, USB, Internet |
| Operating temperature | -20…+55°C (-30…+55°C with limitations) |
| Dimensions | 82×63×20mm |
158.60€
Out of stock
