Eldes Wireless touchpad EWKB5

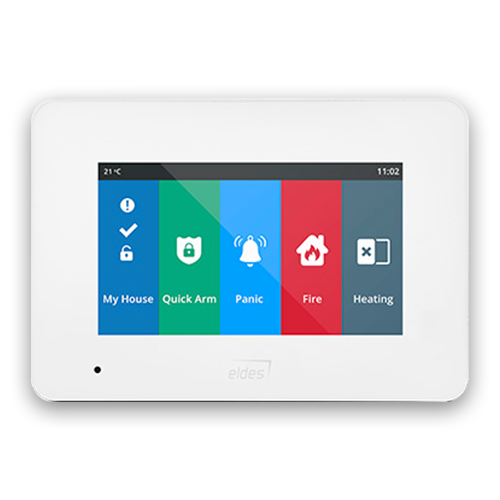

WIRELESS TOUCHPAD EWKB5

• Arming and disarming
• Violated zone bypass and bypassed zone activation
• PGM output control
• Customizable user-friendly graphical menu
• Navigation through the menu using the touch screen
• Multilingual voice-guided audio instructions
• Adjustable brightness and volume level
• Battery or externally-powered

EWKB5 has 1 built-in zone terminal, which is by default designed for passive wired digital sensor connection, such as magnetic door contact, and 2 tamper switches for enclosure state supervision in case it is illegally opened or detached from the wall. Regardless if the tamper switch alone is to be used, the zone must be enabled and the resistor of 5,6kΩ nominal must be connected across Z1 and COM connectors (illustrated on page 4). It is possible to connect up to 2 EWKB5 devices to alarm systems. The maximum wireless connection range is 1000m (~3281ft) (in open areas).

• Supply voltage 8-15V == 400mA max
• Supported batteries 1,5V Lithium AA type FR6 (IEC) / 15LF
• (ANSI/NEDA)
• Number of batteries 6
• Battery operation time ~14 months*
• Display 4.3in; 480×272 true-colour touch screen
• Wireless band ISM868/ISM915
• Range of operating temperatures 0…+50°C (+32… +122°F)
• Humidity 0-80% RH @ 0… +40°C (0-80% RH @ +32… +104°F) (non-
• condensing)
• Dimensions 138x96x22 mm (5.43×3.78×0.87in)
• Wireless communication range Up to 1000m (~3281t) in open areas
• Compatible with alarm systems ELDES Wireless
