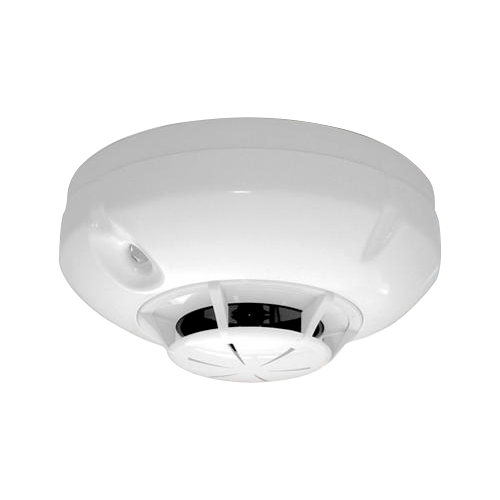

Addressable fixed temperature heat detector FD7110

PRODUCT DESCRIPTION

The fire detector provides reliable early warning of Fire condition upon ambient temperature reaching a fixed temperature threshold.
The temperature class (A1S, A2S or BS) is in compliance with the European Standard EN54-5 and is programmable by Fire Control Panel IFS7002. The fire detector is suitable for premises with normal and high ambient temperature, with possible sudden changes.

Technical data

Operation: Microprocessor controlled, fixed temperature threshold dependable
Supply voltage: (15-30)VDC
Terminals: For wires with cross section (0.8-2.5)mm2
Degree of protection: IP 43
Operation temperature: Minus 10oC to 55oC
Relative humidity: (93±3) % at 40oC
Sensitivity: In accordance with EN54-5, class A1S, A2S or BS
Mounting: Using base type 7100
Dimensions (base included): Ø100, h 47 mm
Casing material: ABS plastics, white
Weight (base included): 0.100 kg
Protected area: Circle with diameter 10m, h 8m
