Description

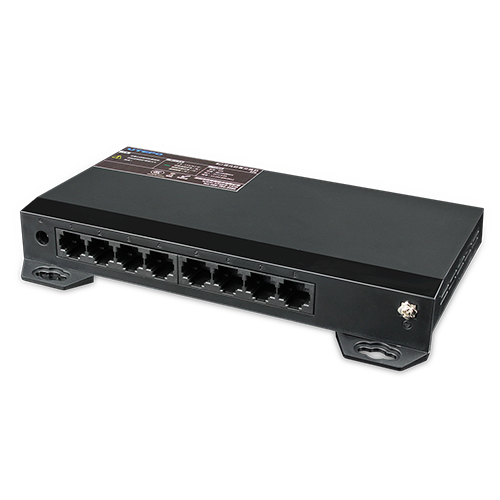

8-Port 100M Anti-surge Ethernet Switch
| Model | SF8 |
| Interface | 8*10/100Base-TX Ethernet Ports |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3X |
| Switch Fabric | 1.8Gbps |
| Packet Forwarding Rate | 1.14Mpps |
| Interface Buffer | 738 Kbits |
| MAC Address | 2K |
| Indicator | 1-8: Link/Act, Connecting (ON). Data transmitting(BLINK), Linkage fault(OFF) |
| Power(PWR): Supply power (ON), Power supply failure (OFF) | |
| Ülepinge kaitse | Common Mode, 6KV, IEC61000-4-5 |
| ESD Kaitse | Contact discharge 6KV, air discharge 8KV. IEC61000-4-2 |
| Toite võimsus | DC 5V0.6ma |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 8%-98% (Non-condensing) |
| Dimension (L*W*H) | 180*104*28mm (L*W *H) |
| Certification | CE, FCC, RoHS |

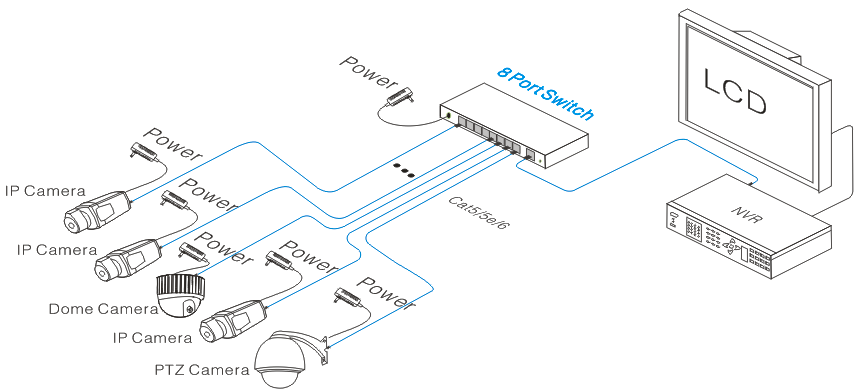

SF8 is an 8-Port 100M Anti-surge switch, which is specially designed for security digital monitor transmission. It supports 6KV surge immunity and 8KV ESD immunity , preventing the port from the damage caused by indirect lightning and ensuring the reliability of data transmission. The switch is widely used in security video monitoring and networking of small & medium size enterprises.
