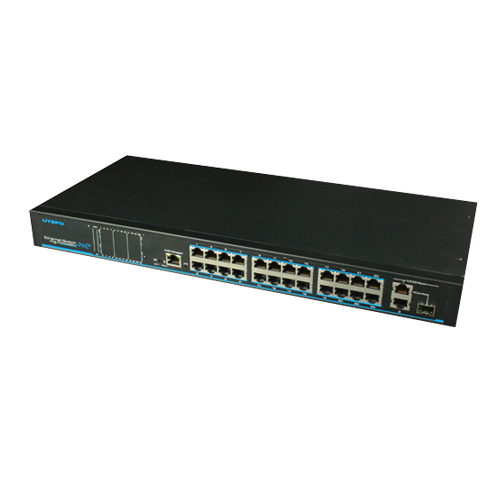

24 Ports PoE Fast Unmanaged Ethernet Switch

SKU: UTP1-SW24-TP420 Category:
Monthly payment from 11.36€ / 36 months

24 Ports PoE Fast Unmanaged Ethernet Switch

  • Provide 24*10/100Base-TX downlink PoE Ethernet
    ports, 2*10/100/1000Base-T uplink Ethernet ports
    and 1*1000Base-X/SFP;
  • Downlink Ethernet ports support PoE+, each port
    supports max. 30W output;
  • Support power consumption indication(LED
    indicates power output status); support manage
    PoE on/off and power consumption setting via
    Web;
  • One-key CCTV mode: all the downlink ports can
    only comunicate with uplink ports ;retrain the
    network storm to 3Mbps; extend transmission
    distance of the downlink ports to 250m max. l Quick installation, easy operation, convenient for
    wall-mounted、desktop and rack installations.

Technical specification

Manual

Product link

280.60€

Out of stock

Description

24 Ports PoE Fast Unmanaged Ethernet Switch

Model Number UTP1-SW24-TP420
Downstream Ports 24* 10/100Base-TX( PoE)
Uplink Ports 2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo)
Network Standard IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3X
Switch Capacity 8.8Gbps
Throughput 6.55Mpps
Switch Processing Scheme Store and Forward
Memory Buffer 2.75M
MAC Table 4K
PoE Standard 802.3af/at(PSE)   End-span
One-key CCTV mode all the downlink ports can only comunicate with uplink ports ;retrain the network storm to 3Mbps; extend transmission distance of the downlink ports to 250m max.
Power Pin Assignment 1/2(+)，3/6(-)
PoE Power Output 54V DC , 30 watts max
PoE Budge 390 watts max
PoE Management Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output
Lightning protection 6KV    Execute：IEC61000-4-5
ESD 6KV     Contact discharge
8KV       Air discharge
Execute：IEC61000-4-2
Power Supply 100~240V AC；50/60Hz
Power Dissipation ＜420W(Including PoE)
Work temperature -10℃~50℃
Storage temperature -40℃~85℃
Humidity(Non-condensin) 5%-95%
Dimension（L×W×H） 442mm×207mm×44.5mm
Weight 2.79kg
Regulator CE、FCC、ROHS
